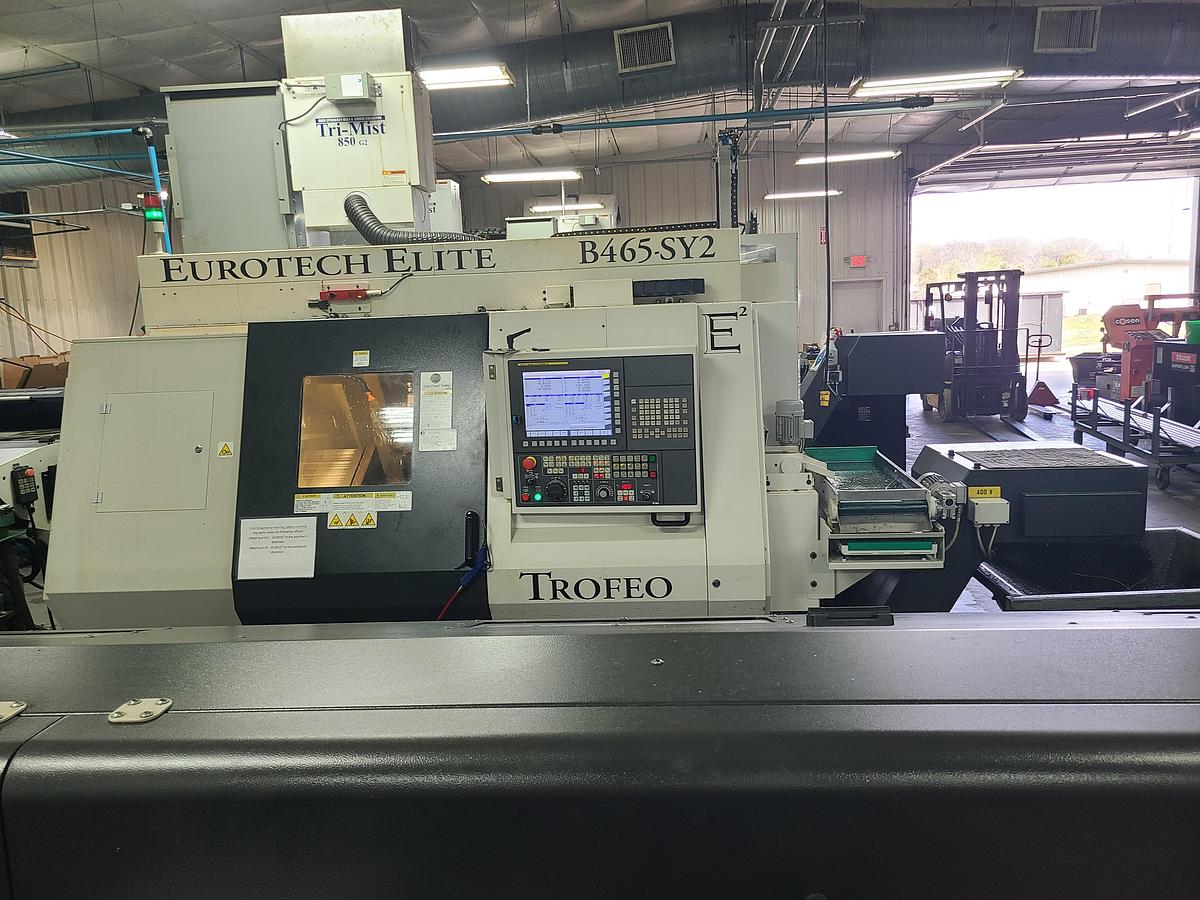

2020 Eurotech B465-SY2 TROFEO

Equipped With

Fanuc 31iB CNC Control

Tri-Mist 850 G2 Mist Collector

12 Foot Edge Patriot 551 Magazine Barfeed

LNS Magnetic Chip Conveyor in addition to Standard Chip Conveyor (2 chip conveyors included)

EU-1000-2 HP Coolant System

Royal QG-65 Main Spindle Collet Chuck

Royal QG-42 Sub-Spindle Collet Chuck

Coolant Thru Sub Spindle

200mm Ejector Option

Fargo DA 51XN1/FE Transformer

Optional Tooling* (see below)

General Specifications

Bar Capacity: 2.56"

Distance Between Centers: 37.5"

Swing Over Diameter: 20"

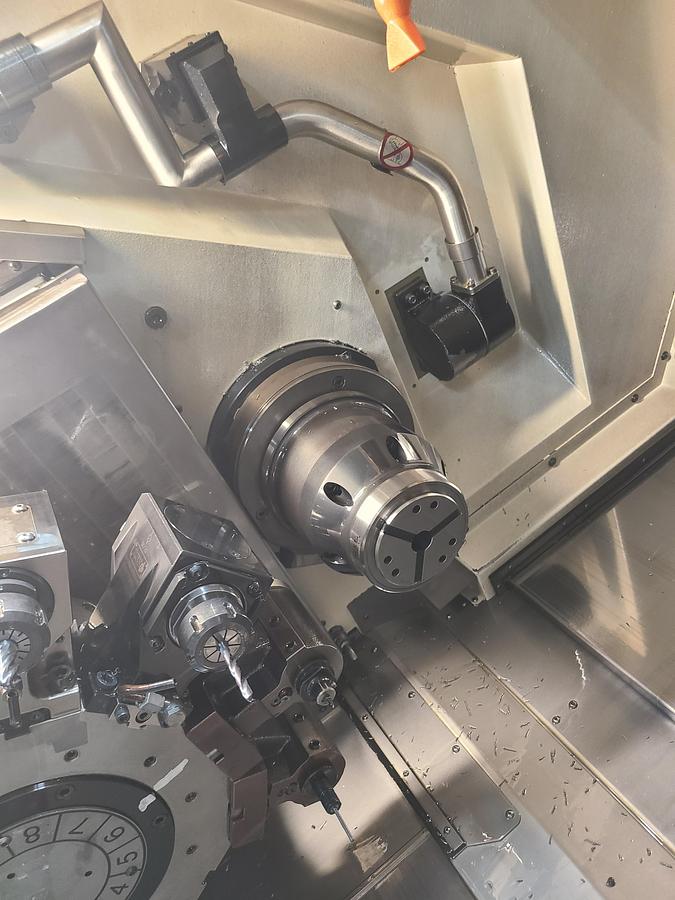

Main Spindle

Spindle Speed: 4,000 RPM

Spindle Nose: 6" ASA

Spindle Bore: 3.15"

Spindle Motor: 35HP

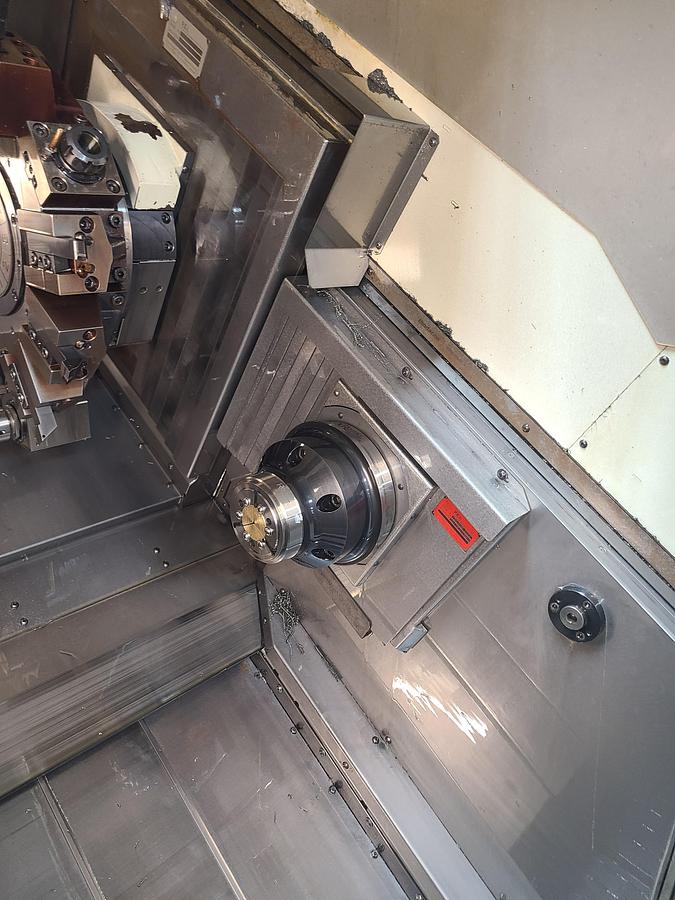

Sub Spindle

Spindle Speed: 5,000 RPM

Spindle Nose: 5" ASA

Spindle Bore: 2.17"

Spindle Motor: 15 HP

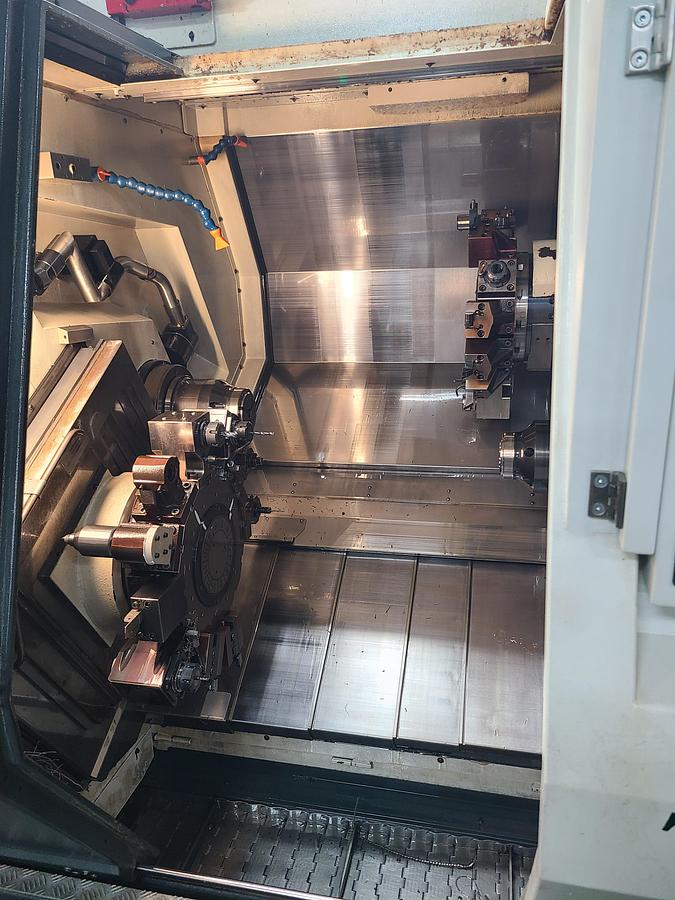

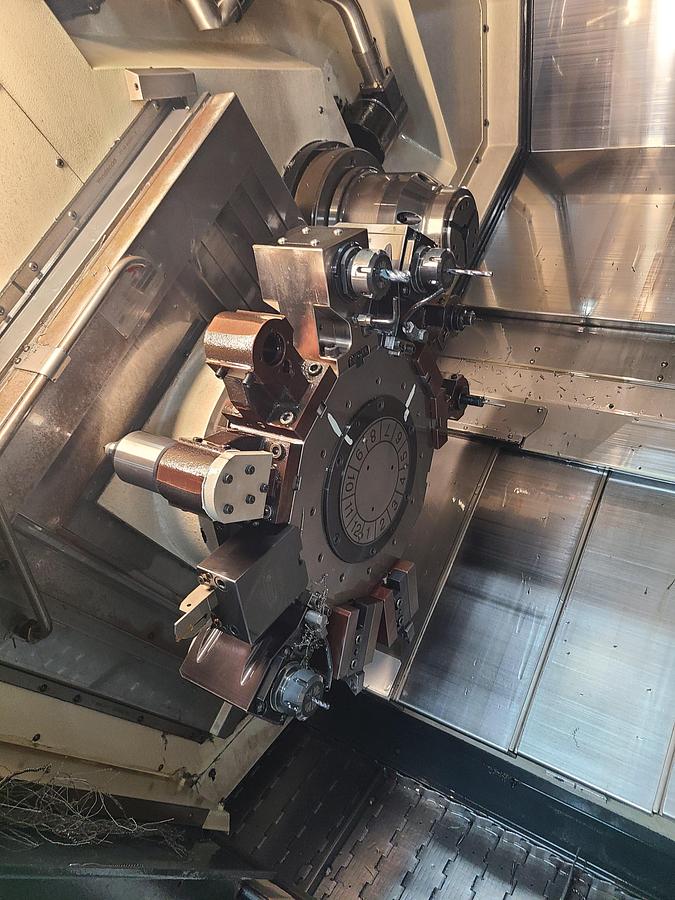

Turret

Number of Stations / Max Number of Tools: 12 / 192

Turret Indexing (1 Position): 0.15 Seconds

Number of Live Tool Stations / Max Number of Live Tools: 24 / 48

Tool Speed (Standard/Max): 4,000 / 6,000 RPM

Optional Tooling

Osterle X Axis Live Tools 300-5501-E32 B109  Qty 9

P144-00118 Double Outlet Radial  Qty 5

P144-00901 3 Position ID Block  Qty 1

2 radial toolholders 10.57.82.00

3 boring bar holders 1 ¼” h=100mm 10.88.39.00

3 boring bar holders 1 ¼” h= 80mm 10.57.84.00

2 cut-off toolholders 10.57.85.00

2 toolholders 10.88.01.00

4 toolholders 20x20 to machine on the sub-spindle 10.88.14.00

2 coolant plugs 10.57.84.03.1

Dimensions

Machine with Chip Conveyor: 173" x 85" x 89"

Spindle Center Height: 42"

Machine Weight with Chip Conveyor: 17,900

*To the best of our knowledge all details listed are deemed correct.

It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
