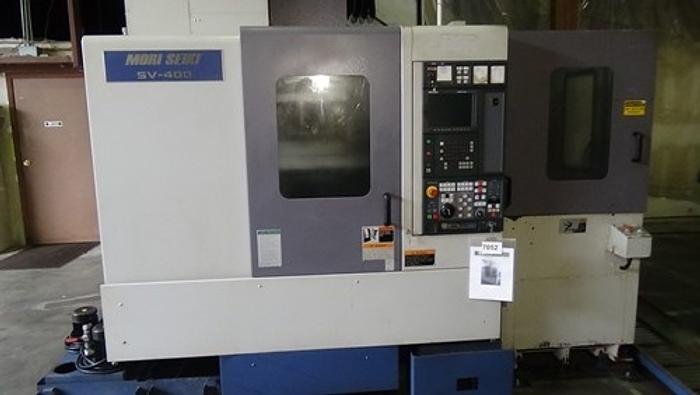

23.62"X, 16.93"Y, 18.11"Z, MORI SEIKI SV-400 VMC, Twin Pallets, 12,000 RPM
No longer available
23.62"X, 16.93"Y, 18.11"Z, MORI SEIKI SV-400 VMC, Twin Pallets, 12,000 RPM
$34,900 (USD)
Helena, AL
Description
SV-400, 3
TRAVELS:
X Axis: 23.62"
Y Axis: 16.93"
Z Axis: 18.11"
Distance from Table
Surface to Spindle Gauge
Plate: 5.91" Min. to 24.02" Max.
TABLE:
Table Size: 35.43" x 19.69"
Maximum Weight on Table: 1,100 Lbs.
Number of T-Slots: 5
SPINDLE:
Spindle Speed Range: 12,000 RPM
Spindle Hole Taper: #40
Spindle Bearing Inner Diameter: 2.75"
FEED:
Rapid Traverse Rate X, Y, Z: 1,259.84 IPM
Feed Rate: 0.039 to 629.92 IPM
Jog Feed Rate, 15 Ranges: 0 to 50 IPM
AUTOMATIC TOOL CHANGER:
Tool Shank: Cat 40
Pull Stud: 90 Degrees
Number of Tools: 30
Max. Tool Diameter with Adjacent Tools: 3.14"
Max. Tool Diameter without Adjacent Tools: 4.92"
Max. Tool Length: 11.81"
Max. Tool Weight: 17.6 Lb.
MOTORS:
Spindle Motor (15 Min. / Cont.): 30 / 24.79 HP
Feed Rate Motor
X, Y Axis: 1.88 HP
Z Axis: 5.09 HP
Electrical Power Supply: 47.4 KVA
Compressed Air Supply: 71.1 PSI, 52.8 GPM
Coolant Tank Capacity: 68.64 Gallons
Required Floor Space: 84.53" x 97.64"
Maximum Height: 106.42"
Weight: 11,440 Lbs.
Specifications
Manufacturer | Mori Seiki |
Model | SV-400 |
Year | 1999 |
Condition | Used |
Stock Number | 7052 |
