1999 Messer M2B2-0010 CNC Plasma | 6'x20' 100 Amps, PILOT Control, Dry Table

1999 Messer M2B2-0010 CNC Plasma | 6'x20' 100 Amps, PILOT Control, Dry Table

$24,500 (USD)

Location:Helena, AL

orCall 205-664-9644

Description

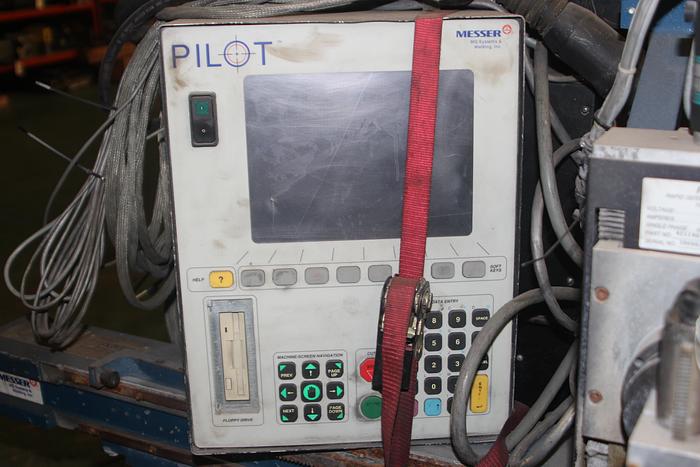

Table: 6' x 20' Dry Type Power Supply: Hypertherm Model Max100D Recommended: 11/4" (32 mm) 20 IPM (500 mm/min), 11/2" (38 mm) 10 IPM (250 mm/min) Severance: 2" (50 mm) 5 IPM (125 mm/min) Pierce: 7/8" (22 mm)* Input Voltages: 200 - 600 V, 3-PH, 50/60 Hz 230 - 400 V, 3-PH, 50/60 Hz Input Current @16.8 kW CSA Output current: 30 - 105 A Rated Output voltage: 160 VDC 150 Volt 100 Amp 80% Duty Cycle Max. OCV 280, 240/480 Volt 3 PHASE Floor Space Dimensions: 10' x 34' Equipped with: Pilot CNC control with display 31/2" Disc drive 2 Serial ports


Freight charges are not included in sale price. Freight scheduling and costs are responsibility of the buyer. Packaging charges to ensure safety of equipment during transport for arrival on buyers truck will be added when applicable.


Specifications

ManufacturerMesser
ModelM2B2-0010 CNC Plasma
Year1999
ConditionUsed
Serial Number8499000751
Stock Number6974
