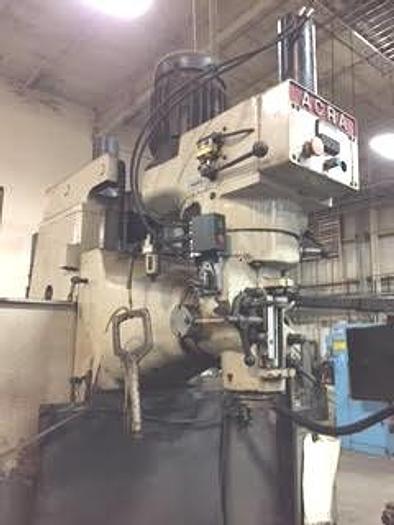

12" x 60" Acra CNC Mill, Anilam 1100 CNC, 40 Taper, Air Power Draw Bar

12" x 60" Acra CNC Mill, Anilam 1100 CNC, 40 Taper, Air Power Draw Bar

$9,500 (USD)

Location:Helena, AL

orCall 205-664-9644

Description

The ACRA CNC Knee Mills Are Fast And Precise Vertical Milling Machines Built On A Rugged Frame And Ideally Suited For Accurate Milling, Boring, And Drilling Operations. Accuracy, Speed, And Reliability Are Achieved By The Combination Of Meehanite Cast, Precision Ground Ways, Turcite-B Mating Surfaces Coupled To An Anilam Dual Processor Control With Color L.C.D., Manual Pulse Generator, And Operator Friendly Software (Other Controls Available) For Quicker, Easier Programming And Set-Up. The Larger Anilam Axis Drives Make Heavier, More Precise Machining A Reality. SPECIFICATIONS 5V(AC) CNC TABLE......................12"x58" Max Table Load.............990 LBS TRAVELS:X..................38" Y..................15" Z..................5" Spindle to Table (max).....20" SPINDLE Taper..............#40 RPM........................750 RPM RAPID: X Axis..............200 IPM Y Axis..............200 IPM Z Axis..............100 IPM ACCURACIES.................JIS Standard *This machine does not currently run, needs new monitor/display. *Make offer!


Freight charges are not included in sale price. Freight scheduling and costs are responsibility of the buyer. Packaging charges to ensure safety of equipment during transport for arrival on buyers truck will be added when applicable.


Specifications

ManufacturerAcra
ModelCNC Mill
ConditionUsed
Stock Number7935
