2020 Republic Lagun RFD-25-TSAR Floor Drill (NEW)

2020 Republic Lagun RFD-25-TSAR Floor Drill (NEW)

$7,364 (USD)

Helena, AL

orCall 205-664-9644

Description

Machine Specifications:


  • Drilling capacity in steel 154.3 lbs. (70 kg): 1” (25 mm)
  • Tapping capacity in steel of l 154.3 lbs. (70 kg): 0.87” (M.22)
  • Transmission : GEARS (Hardened and grounded)
  • Speed number and range (without inverter): (8) 65-125-185–365–540-1,560-3,060 RPM
  • Speed number and range (with inverter): VARIABLE a.) 45-125 b.) 125-370 c.) 380-1070 d.) 1,100-3,100 RPM
  • Feed: Auto
  • Coolant System
  • Main Motor Power (with inverter) motor 1,500 RPM.: 2 HP
  • Spindle cone: MT.3
  • Spindle stroke: 4.72” (120 mm)

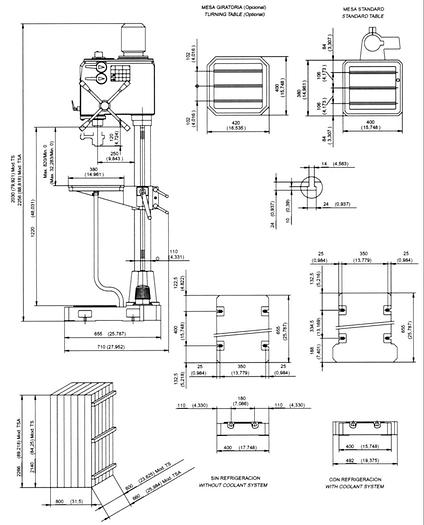

  • Distance spindle-column: 9.84” (250 mm)
  • Distance spindle-table: Min. 6.69” (170 mm) / Max. 25.98” (660 mm)
  • Distance spindle-base: 47.87” (1,216 mm)
  • Column Diameter: Ø 3.93” (100 mm)
  • Dimensions of the table (with 2 T slots): 10.6”x 11.8” (270 x 300 mm)
  • Dimensions of the base without slots (without coolant): 23.6” x 14.9” (600 x3 80 mm)
  • Dimensions of the base with T slots (with coolant): 26.18” x 15.74” (665 x 400 mm)
  • Adjustable depth end: YES
  • Lighting equipment: YES
  • Tool ejector: YES
  • Motor guard and emergency push button: YES
  • Main switch: YES
  • Turning sense selector: YES
  • Electrical equipment at low voltage: YES
  • Electrical equipment in a separate cabinet: YES
  • Drill guard with stop micro: YES
  • CE norms: YES
  • Machine Voltage: 440V
  • Weight: Net / GROSS kg.: 573.2 lbs. (260 kg) / 705.4 lbs. (320 kg)
  • Packaging dimensions and volume: 2,200 x 600 x 900 / 1.19 m3


Standard Features:


  • Spindle and quill housing of Hi-tensile steel hardened and ground.
  • Automatic tool ejector
  • Morse taper No.: 3 with threaded nose and protection nut.
  • Adjustable depth stop, with scale in metric and Inches.
  • Working Table with 2 e/a “T” slots, with rotation around the column and manual vertical movement. Hardened surface.
  • Base plate with “T” slots. Hardened surface
  • Speed connection and selection from general switch
  • Selector for turning direction
  • Emergency push button
  • Motor guard. (Magneto thermic switch)
  • Coolant system built in the base. (R= models only)
  • Quill guard with micro switch
  • Table Vertically adjustable, by manual command (pinion and rack)
  • CE safety rules, with protection in the working area and the necessary electrical protections
  • Top quality steel main spindle/ quill, fully treated and grounded (exterior, interior, grooves and teeth).
  • Work light






Specifications

ManufacturerRepublic Lagun
ModelRFD-25-TSAR
Year2020
ConditionNew
Stock Number9508
