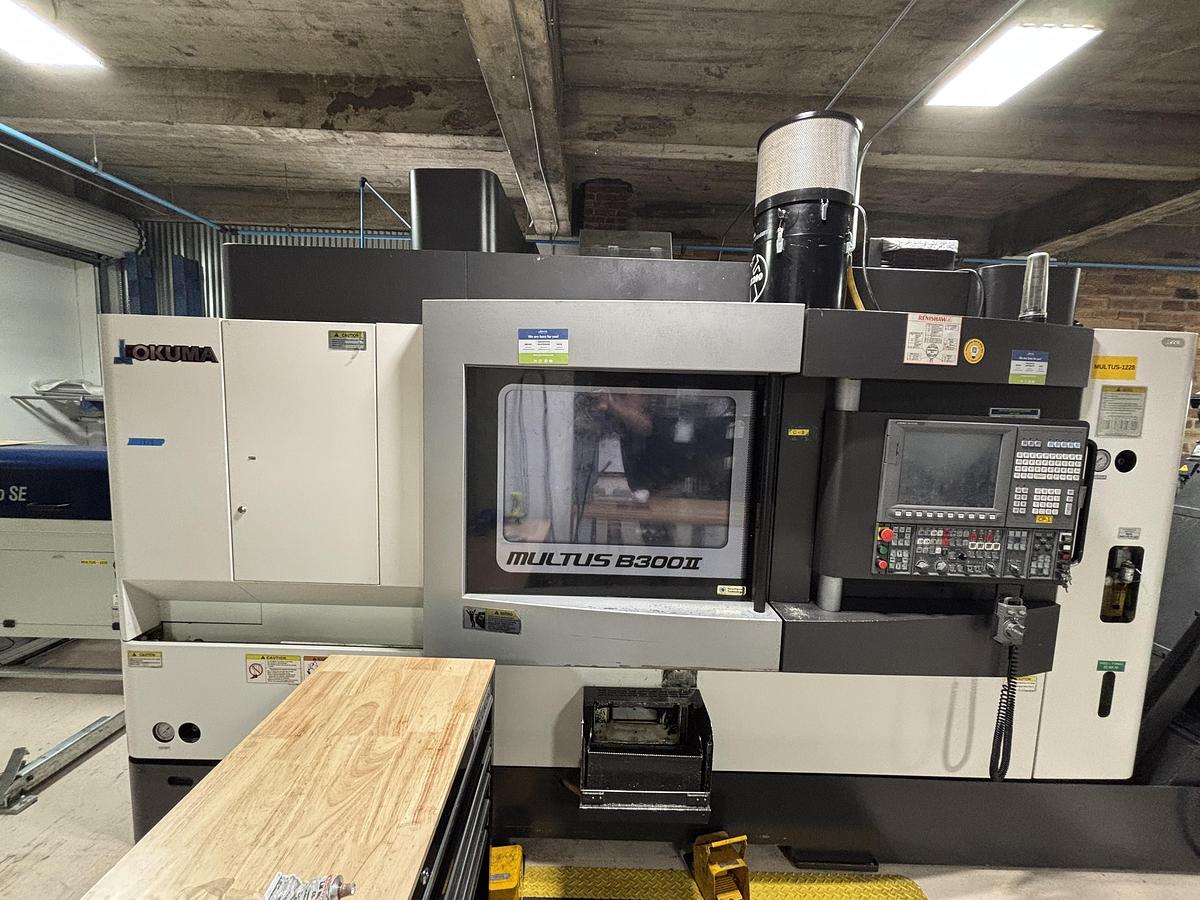

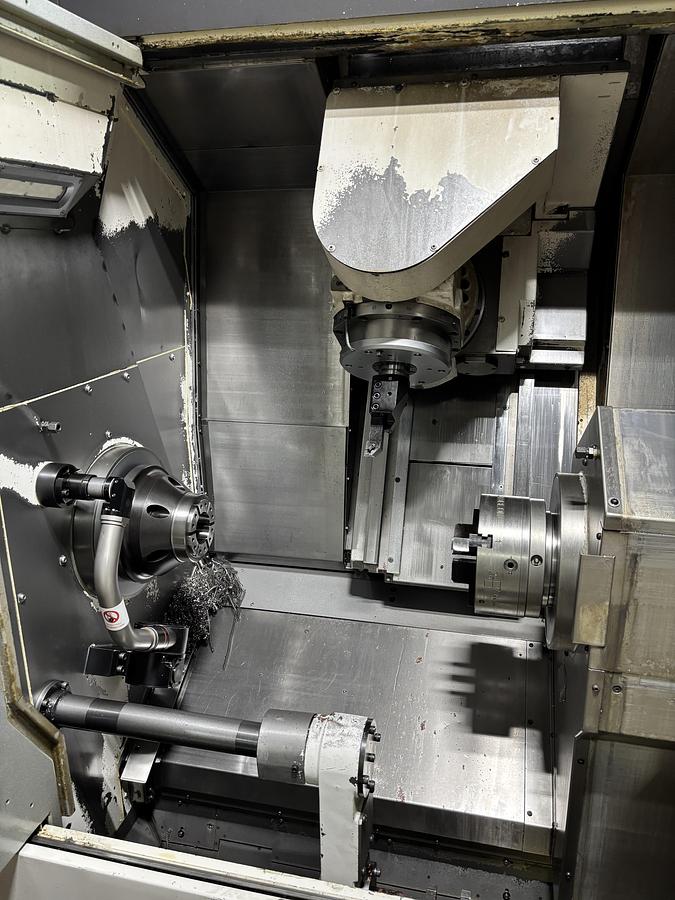

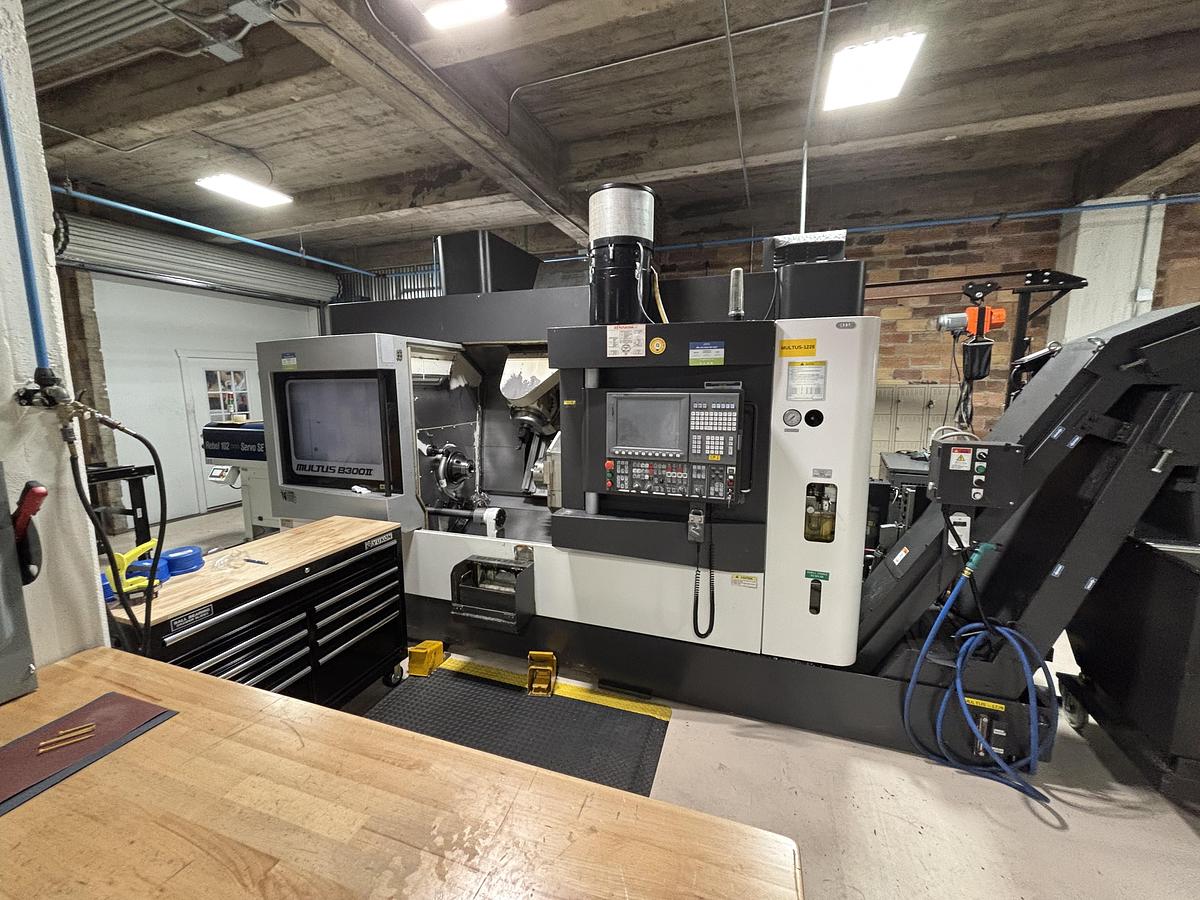

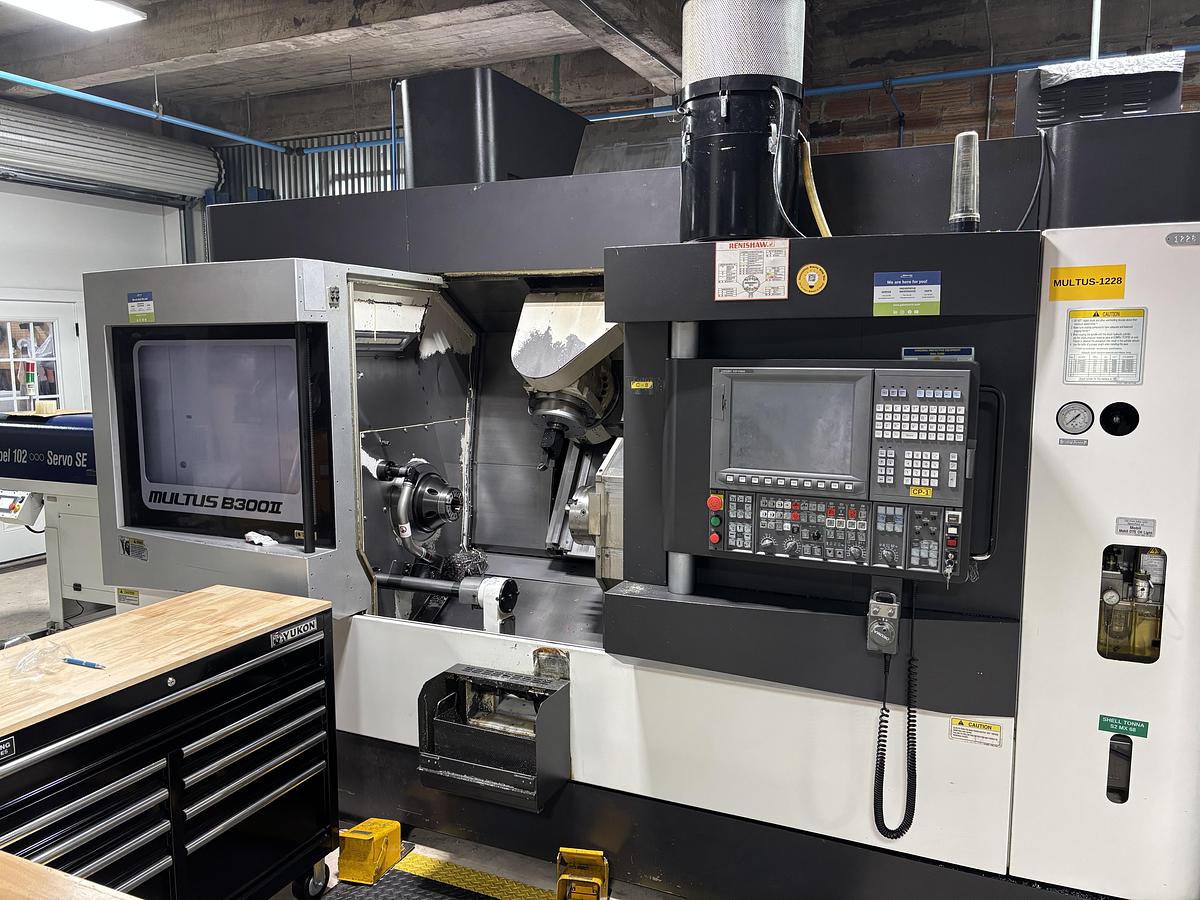

2015 Okuma Multus B300II

Machine Specifications

Swing Over Saddle: 24.8"

Distance Between Centers: 35.43"

X-Axis Travel: 22.83"

Y-Axis Travel: +/- 3.15"

Z-Axis Travel: 35.51"

W-Axis Travel: 39.37"

B-Axis Travel: 30 to +195 degree

B-Axis Indexing: 0.001 degree

Main Spindle Chuck Size: 10"

Main Spindle Speed: 5,000 RPM

Main Spindle Power: 30 HP

Spindle Nose: A2-6

Main Spindle Bore: 3.93"

Main Spindle Bar Size: 3.15"

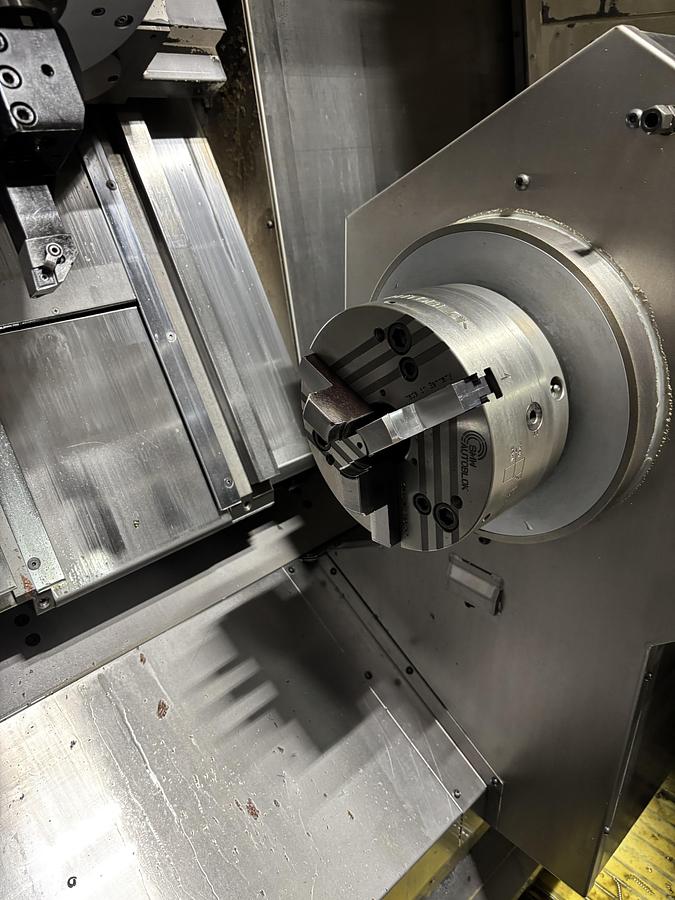

Sub Spindle Chuck Size: 8"

Sub Spindle Speed: 6,000 RPM

Sub Spindle Power: 15 HP

Sub Spindle Bore: 3.94"

Sub Spindle Bar Size: 3.15"

Milling Spindle Speed Max: 12,000 RPM

Milling Spindle Taper: Capto C6

ATC Capacity: 120

Machine Size: 142.52" x 87.01" x 101.66"

Machine Weight: 17,820 lbs

Machine Equipped With

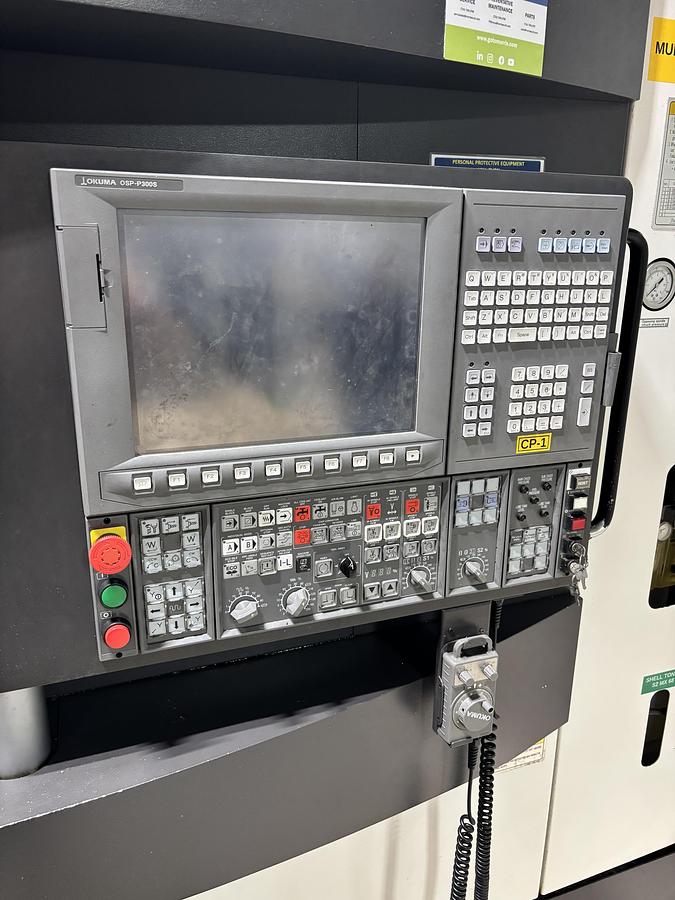

OSP-P300S Control

Sub Spindle

Big Bore Option: 3.15" Bar capacity

Capto C6 Spindle Taper

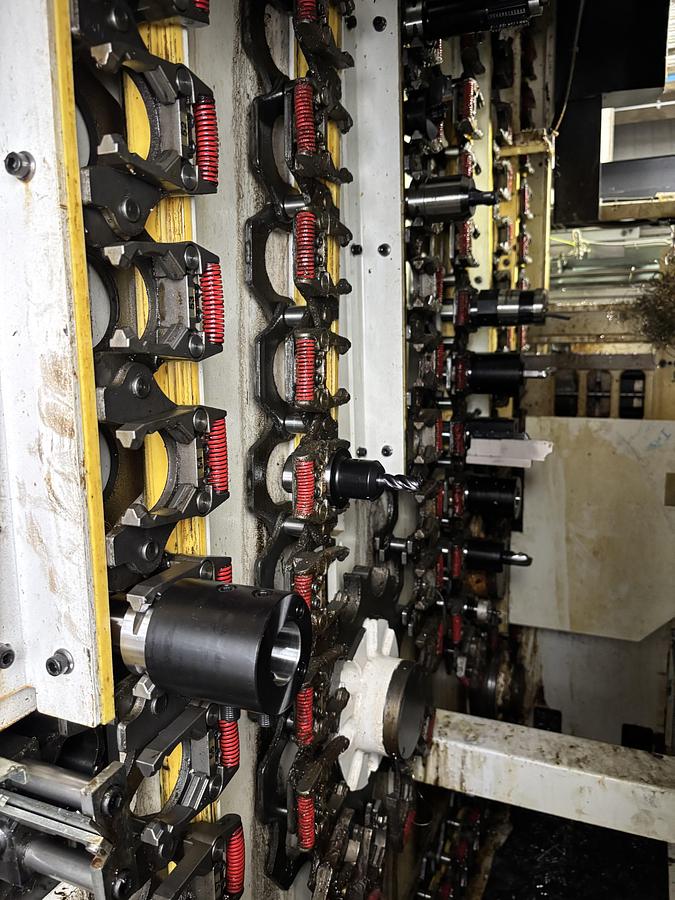

120 Tool Capacity

Tool Presetter

Parts Catcher

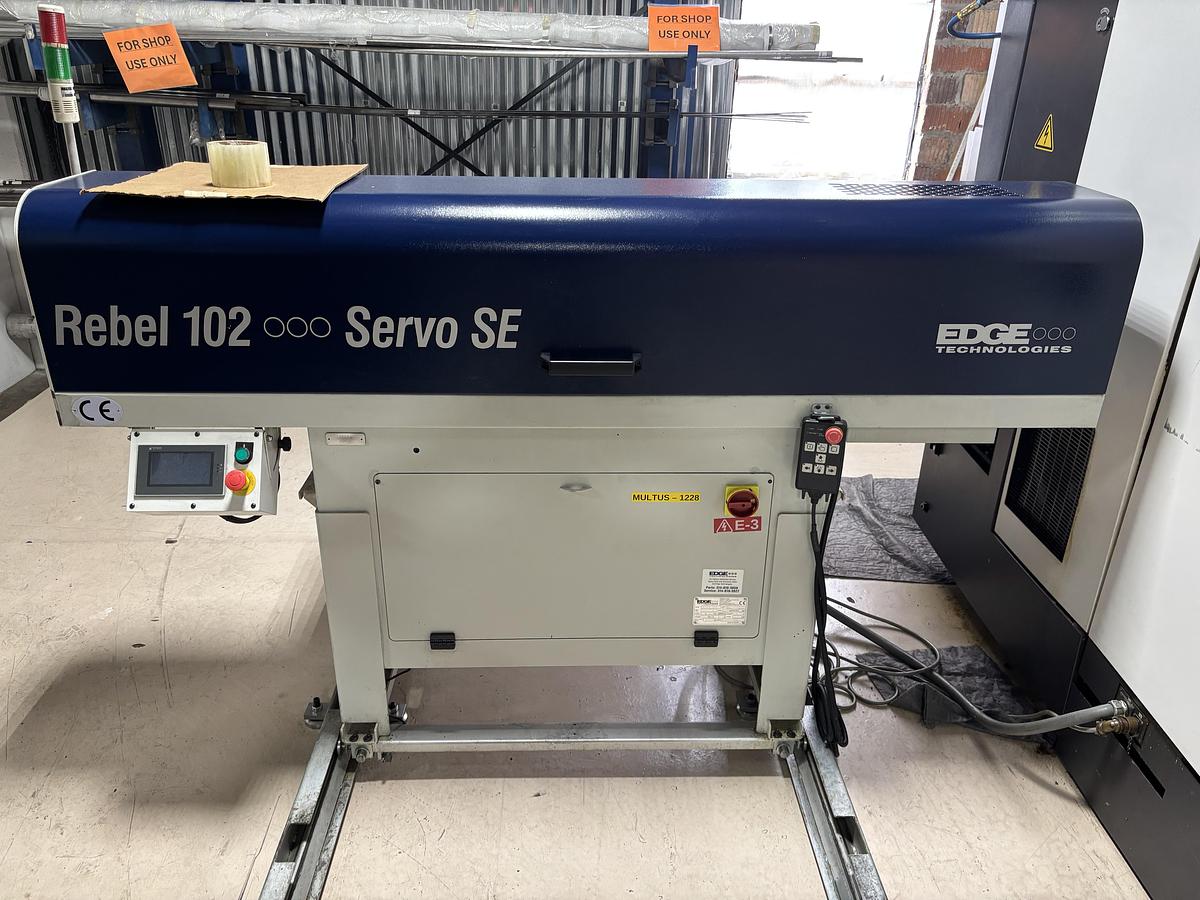

Edge Rebel 102 Bar Feeder

Spindle Liners

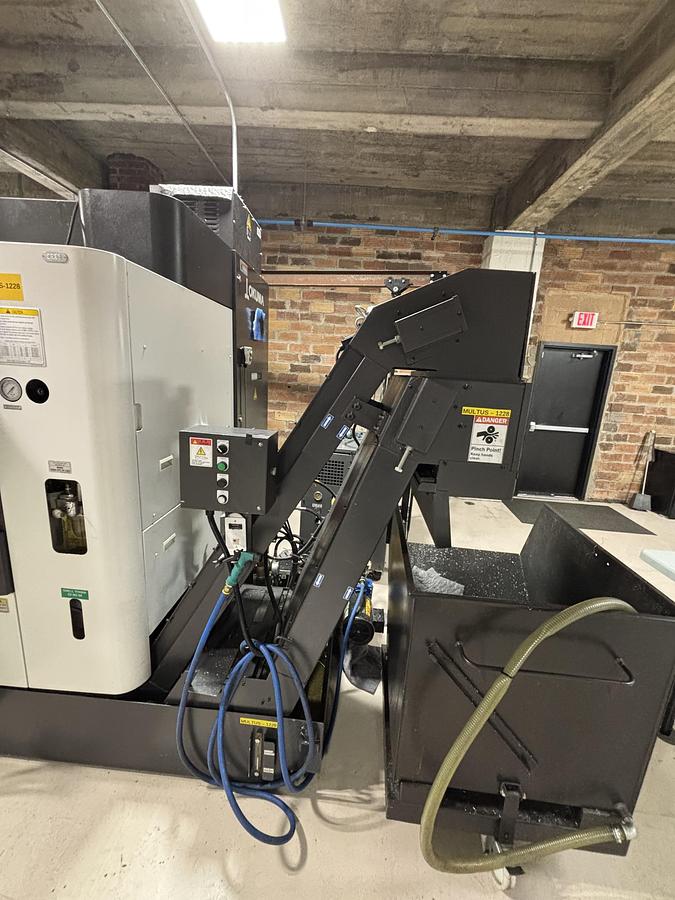

Hinge Type Chip Conveyor

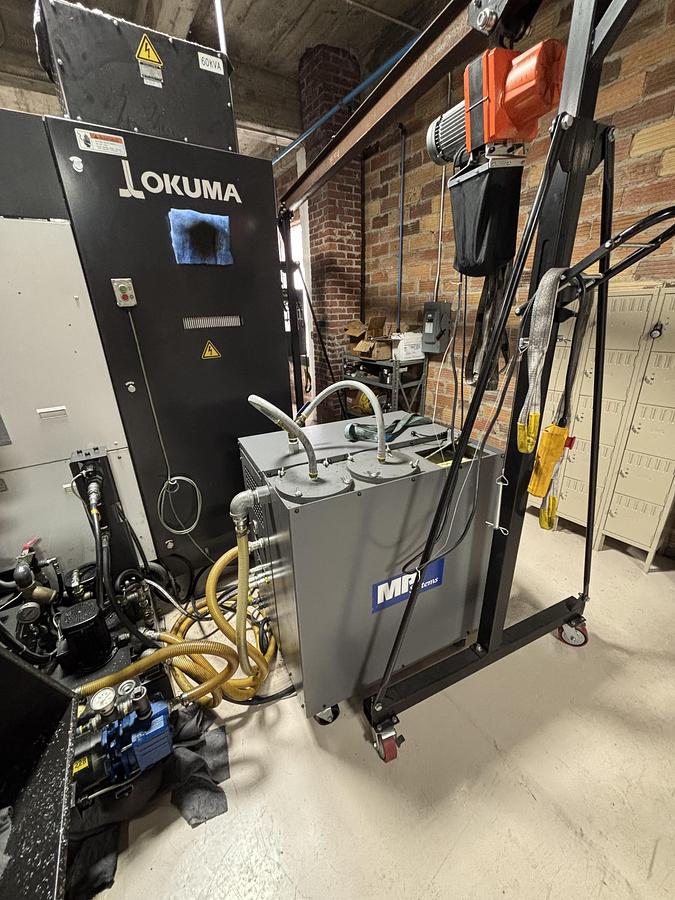

MP Systems 1000 PSI Coolant Thru Spindle

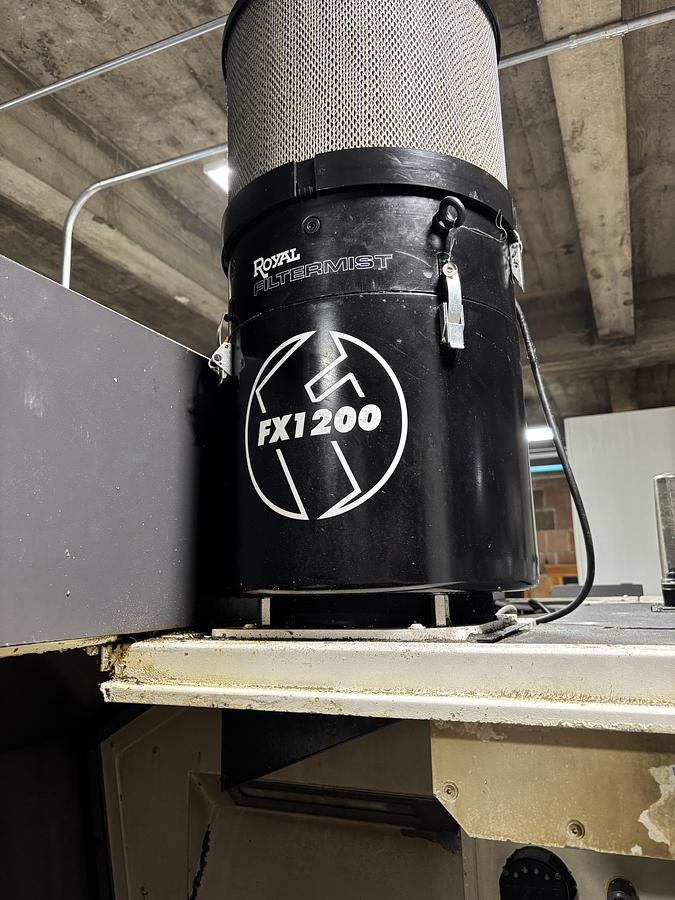

Royal Filtermist FX1200 Mist Control Unit

Coolant Tanks w Flood pumps

Chiller Unit

Transformer

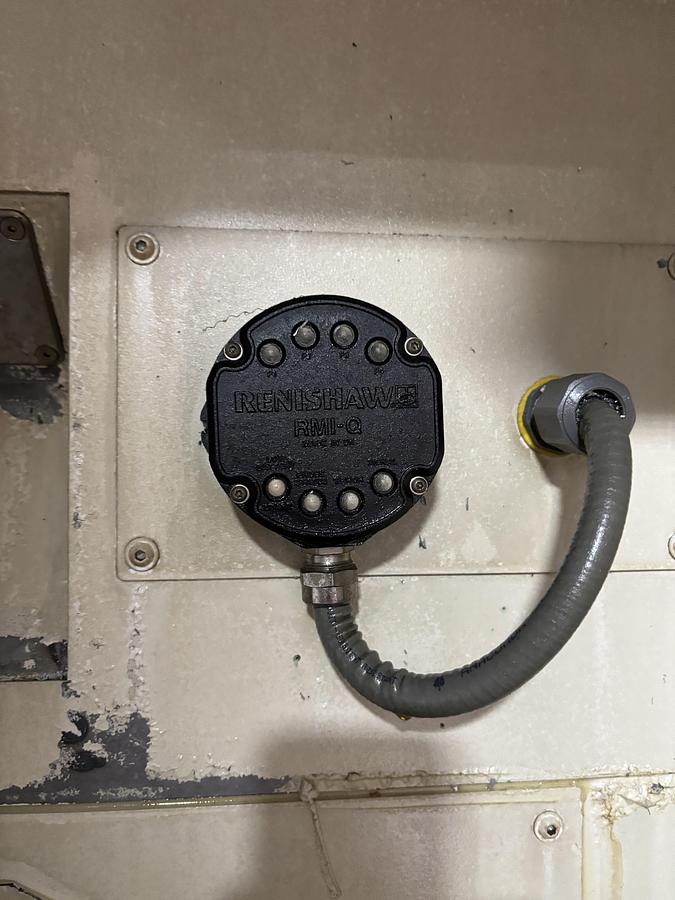

Renishaw Tool Probe (RMI-Q)

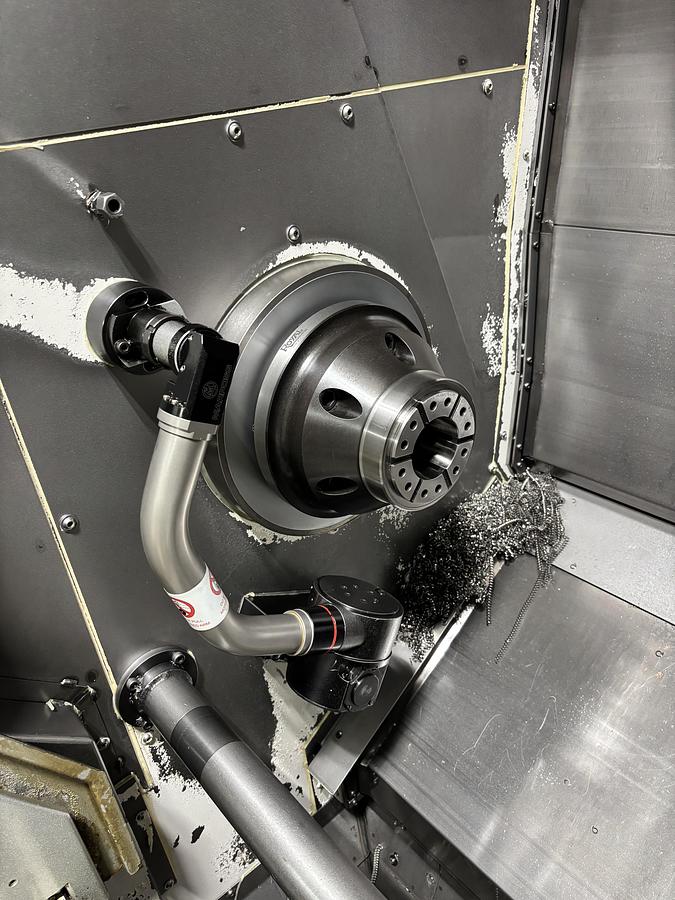

Royal Collet Chuck on Main Spindle

Various Capto C6 Tooling
