2015 Trumpf TruMark 5020 with Workstation

2015 Trumpf TruMark 5020 with Workstation

$64,900 (USD)

Anniston, AL

orCall 205-664-9644

Description

Trumpf TruMark 5020, 1062nm, OEM, Ytterbium, F163

  • Pilot Laser
  • Screen Segmentation

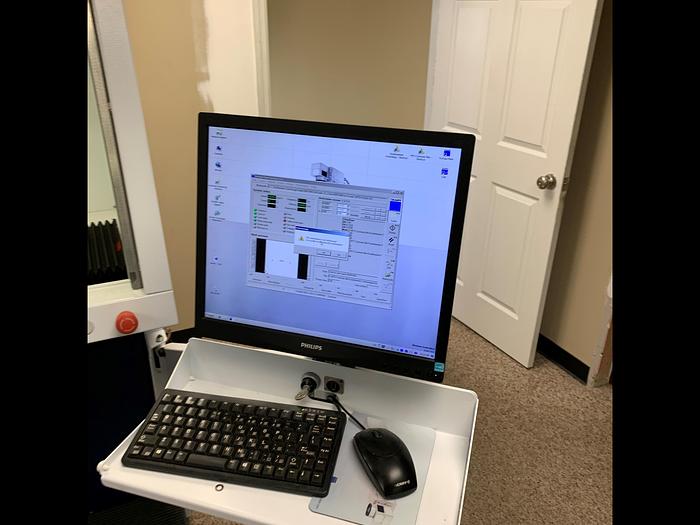

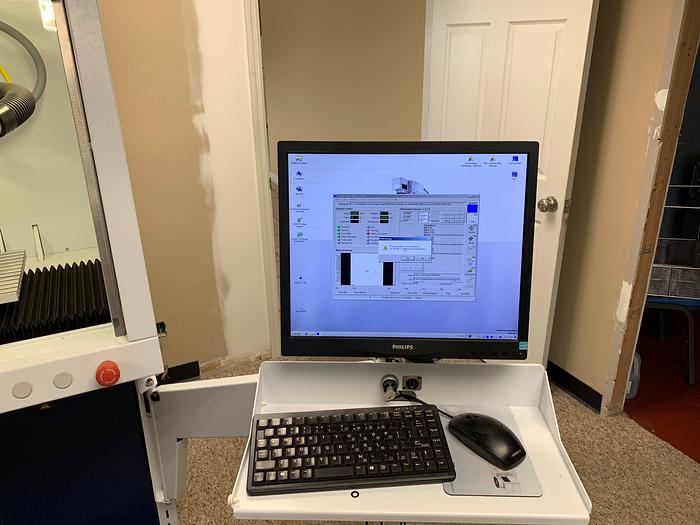

  • TruTops Mark Navigator

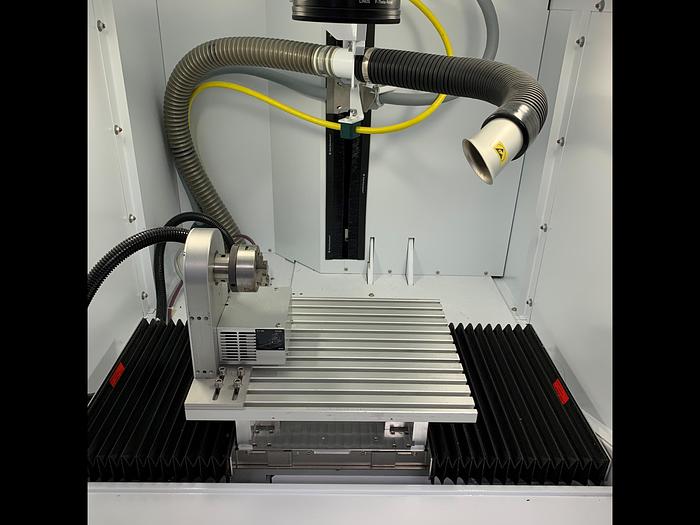

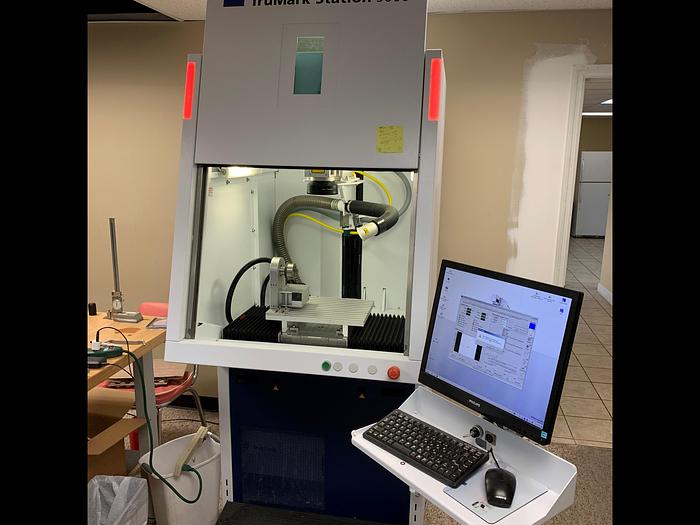

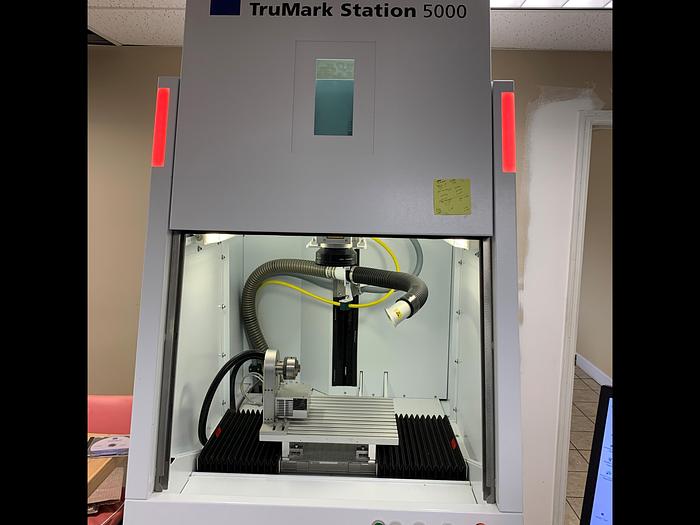

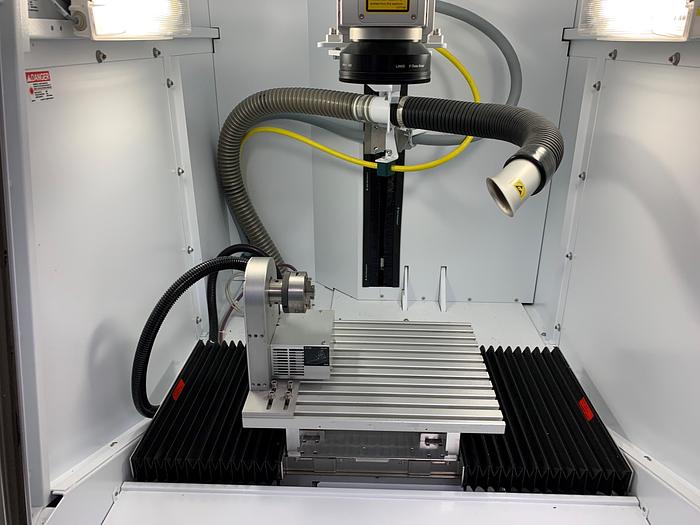

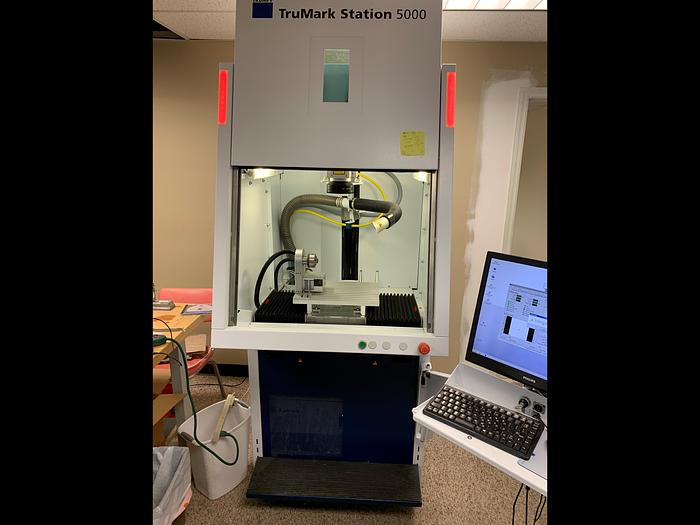

  • TruMark Station 5000, w/o fume extraction system
  • Integrated exhauster
  • X-Axis 300mm travel range

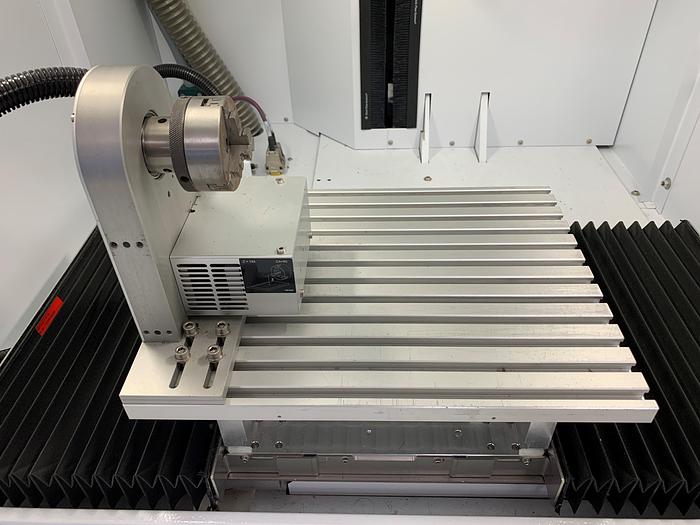

  • Rotary axis DA150 with step motor; with 3 jaw chuck D=125, DA150
  • Processing head
  • compact processing head for fiber laser marker for reliable and fast marking and micro machining
  • active shutter for protection
  • optical isolator allows the treatment of reflecting material
  • internal software controlled focusing unit allows for quick variation of the focal distance by a variable beam expander
  • easy to integrate because of consistent modularity
  • passive air cooling for use at temperatures up to 104 deg F
  • Technical Data
  • Diode pumped fiber laser
  • Active medium: Yb:fiber
  • Wavelength: 1062 ±3nm
  • Beam quality: M2 <2.0
  • Spot diameter: approx 67μm with f=163mm lens (line width dependent on material and application)
  • Pulse peak power: PP, max >14kW @26.5kHz
  • Pulse duration: 9 to 200 ns
  • Frequency range: cw, 1 to 1,000 kHz
  • Protection class: IP 54
  • Dimensions
  • Processing head (L x W x H) 13.9" x 5.2" x 4.8"
  • Supply unit: (W x L x H) 17.5" x 16.5" x 21.7"
  • Weight
  • Processing head:18.5 lbs
  • Supply unit: 104 lbs

Specifications

ManufacturerTrumpf
ModelTruMark 5020 with Workstation
Year2015
ConditionUsed
Serial NumberL1150E0836
Stock Number9505
