Markforged Metal X System

Markforged Metal X System

$99,900 (USD)

Location:Birmingham, AL

orCall 205-664-9644

Description

Printing Process:

Metal Fused Filament Fabrication


Z Layer Resolution:

85 μm - 170 μm (Post-Sinter)


Physical Dimensions:

Width: 575 mm

Depth: 467 mm

Height: 1120 mm

Weight: 75 kg / 165 lbs


Build Volume:

Width: 300 mm

Depth: 220 mm

Height: 180 mm


Materials:

Metal: Stainless Steel (17-4 PH), Tool Steel (H13, A2, D2), Inconel 625, Copper

Release Material: Ceramic (consumed at 1:10 ratio to metal spools, on average)

Media: Filament Fed, Bound Powder


Max Part Size:

250 x 183 x 150 mm (9.8 x 7.2 x 5.9 in), 10kg


Power:

100–120 / 200-240 VAC (12A / 6A), IEC 60320 type C20

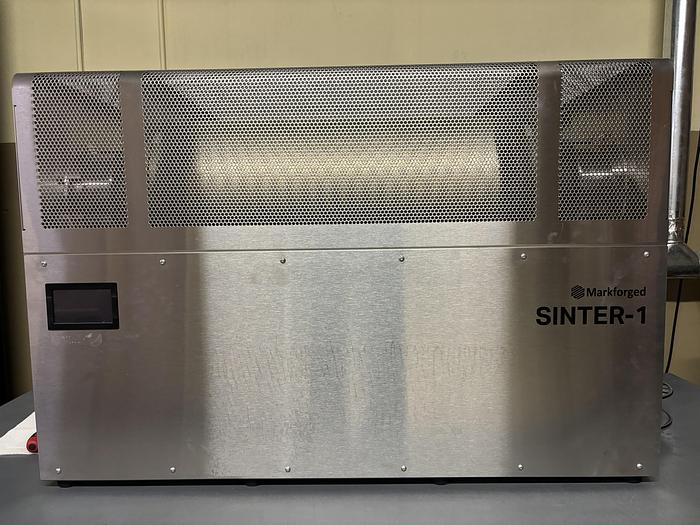

*Printer System includes with Sinter-1 and Wash-1

Specifications

ManufacturerMarkforged
ModelMetal X System
ConditionUsed
Stock Number0003
