2020 Eurotech B465-SY2 TROFEO

2020 Eurotech B465-SY2 TROFEO

Contact us for price

Location:Helena, AL

orCall 205-664-9644

Description

Equipped With

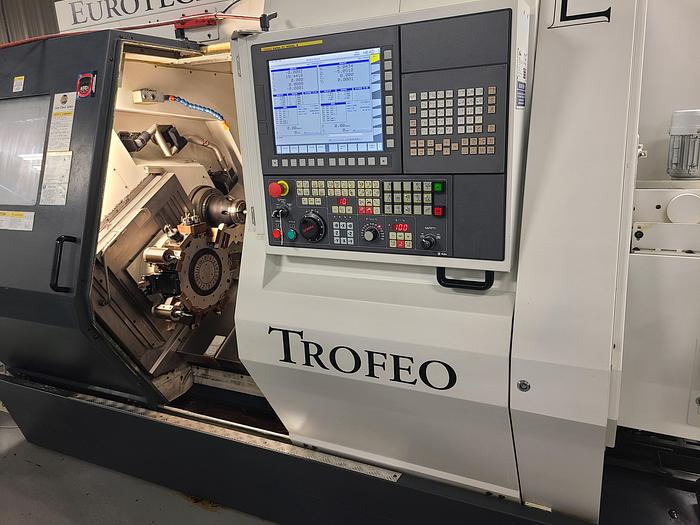

Fanuc 31iB CNC Control

Tri-Mist 850 G2 Mist Collector

12 Foot Top X-Files Magazine Barfeed

LNS Magnetic Chip Conveyor in addition to Standard Chip Conveyor (2 chip conveyors included)

EU-1000-2 HP Coolant System

Royal QG-65 Main Spindle Collet Chuck

Royal QG-42 Sub-Spindle Collet Chuck

200mm Ejector Option

Fargo DA 51XN1/FE Transformer



General Specifications

Bar Capacity: 2.56"

Chuck Size: 8"

Distance Between Centers: 37.5"

Swing Over Diameter: 20"


Main Spindle

Spindle Speed: 4,000 RPM

Spindle Nose: 6" ASA

Spindle Bore: 3.15"

Chuck Size: 8"

Spindle Motor: 35HP


Sub Spindle

Spindle Speed: 5,000 RPM

Spindle Nose: 5" ASA

Spindle Bore: 2.17"

Chuck Size: 6"

Spindle Motor: 15 HP


Turret

Number of Stations / Max Number of Tools: 12 / 192

Turret Indexing (1 Position): 0.15 Seconds

Number of Live Tool Stations / Max Number of Live Tools: 24 / 48

Tool Speed (Standard/Max): 4,000 / 6,000 RPM


Hours

Power on: 7525 H

Run time: 3599

Cutting Time: 2311 H


Dimensions

Machine with Chip Conveyor: 173" x 85" x 89"

Spindle Center Height: 42"

Machine Weight with Chip Conveyor: 17,900


*To the best of our knowledge all details listed are deemed correct.

It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

Specifications

ManufacturerEurotech
ModelB465-SY2 TROFEO
Year2020
ConditionUsed
