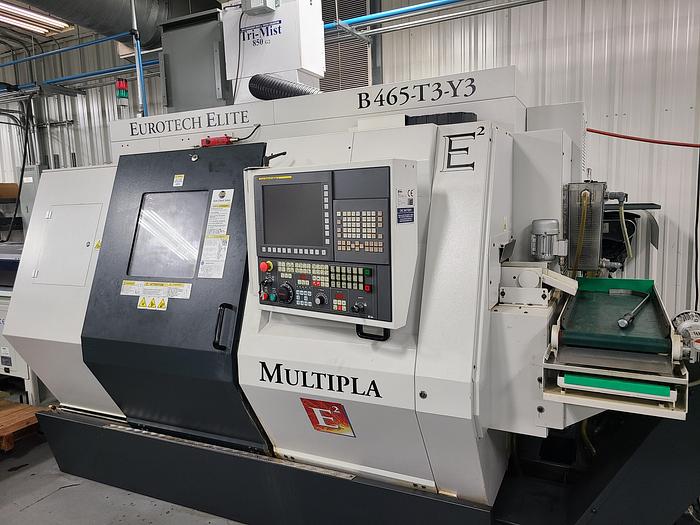

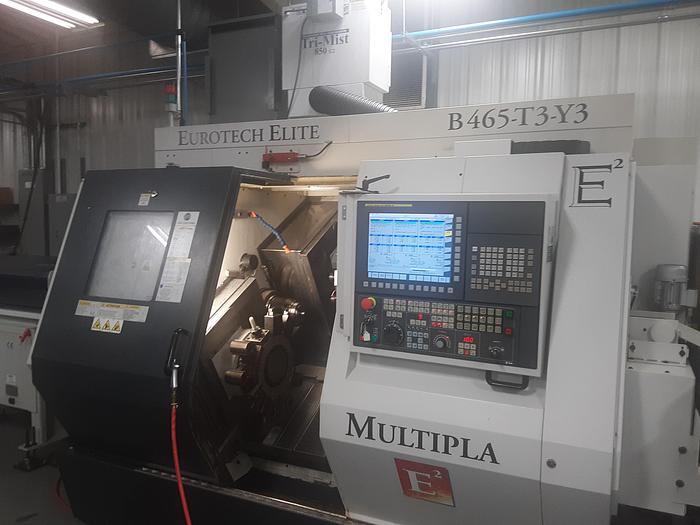

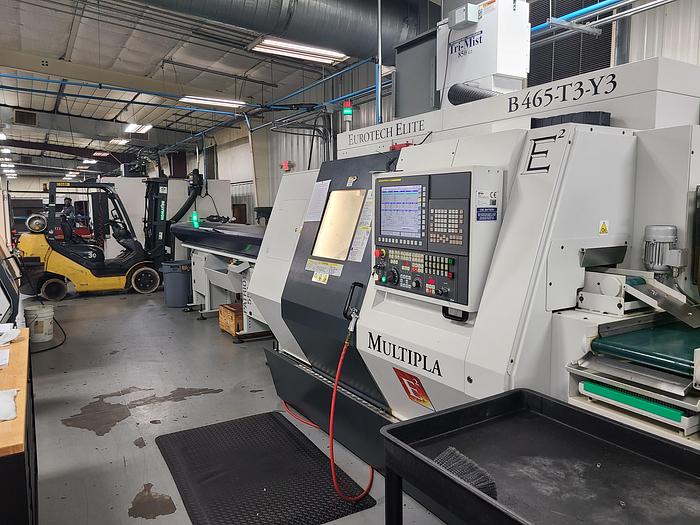

2020 Eurotech B465 T3-Y3 Multipla

2020 Eurotech B465 T3-Y3 Multipla

Contact us for price

Helena, AL

orCall 205-664-9644

Description

Equipped With

Fanuc 31iB CNC Control

Tri-Mist 850 G2 Mist Collector

Dual Parts Conveyor

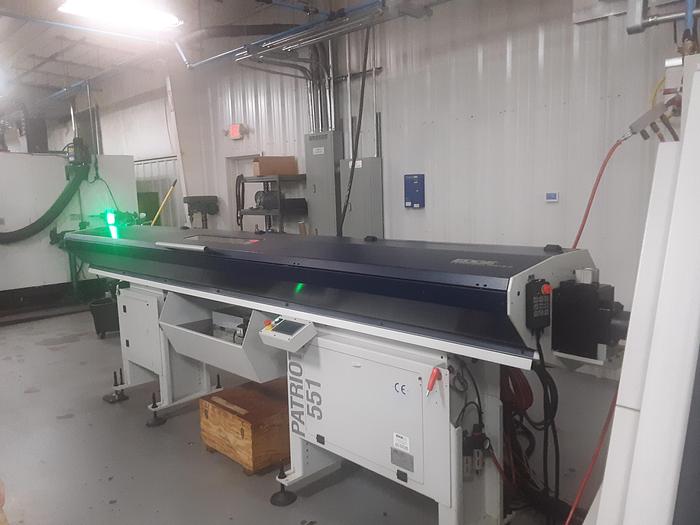

12 Foot Edge Patriot 551 Magazine Barfeed

LNS Magnetic Chip Conveyor in addition to Standard Chip Conveyor (2 chip conveyors included)

EU-1000-2 HP Coolant System Plus 1 Single System

Royal QG-65 Main Spindle Collet Chuck

Royal QG-42 Sub-Spindle Collet Chuck

200mm Ejector Option

Fargo DA 51XN1/FE Transformer


General Specifications

Machining Capacity

Bar Capacity: 2.56"

Chuck Diameter: 8"

Distance Between Centers: 37.5"

Swing Over Diameter: 20"


Main Spindle

Spindle Speed: 4,000 RPM

Spindle Nose: 6"

Spindle Bore: 3.15"

Chuck Diameter: 10"

Motor Power: 35 HP

C-Axis Min. Programmable value: 0.001 Degrees


Sub-Spindle

Spindle Speed: 5,000 RPM

Spindle Nose: 5"

Spindle Bore: 2.17"

Chuck Diameter: 6/8"

Motor Power: 15 HP

C-Axis Min. Programmable value: 0.001 Degrees

Offset Stroke: 4.72"

B-Axis Stroke (Rapid Traverse): 26.35 - 1181 IPM

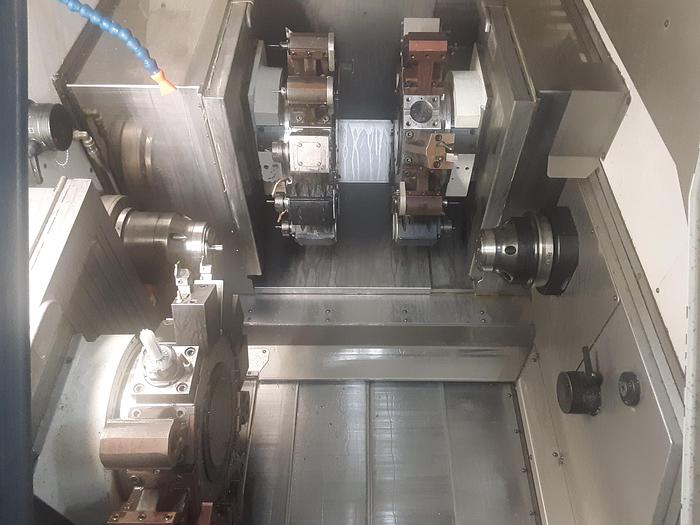

Turrets

Number of Turrets: 3

Number of Stations: 12

Number of Tools: 192

Turret Indexing: 15 Seconds

Number of Live Tool Stations: 36

Number of Live Tools: 72

Live Tool Speed: 4,000 RPM

Motor Powered: 5 Geared


Rapid Traverse (X1/X2/X3): 708 IPM

Rapid Traverse (Z1/Z2/Z3): 1181 IPM

Rapid Traverse (Y1/Y2/Y3): 3.54 (-1.57/+2.32) - 354 IPM


Hours

Power on: 10352 H

Run time: 5719 H

Cutting time: 1069 H


Dimensions

Machine with Chip Conveyor: 173" x 85" x 89"

Spindle Center Height: 42"

Machine Weight with Chip Conveyor: 18,500


*To the best of our knowledge all details listed are deemed correct.

It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

Specifications

ManufacturerEurotech
ModelB465 T3-Y3 Multipla
Year2020
ConditionUsed
