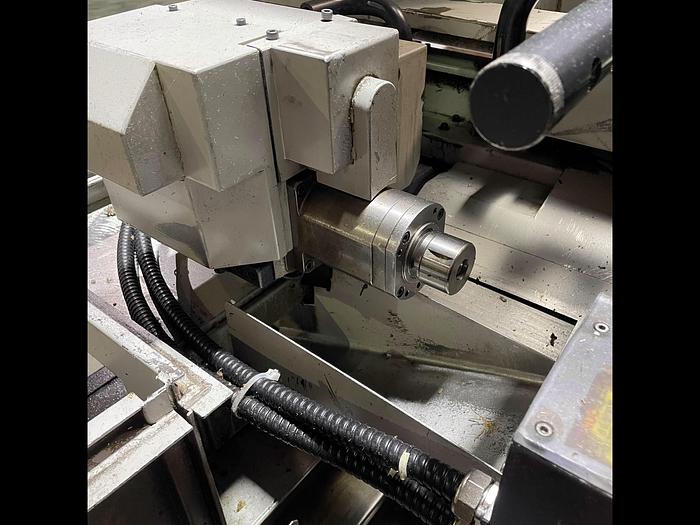

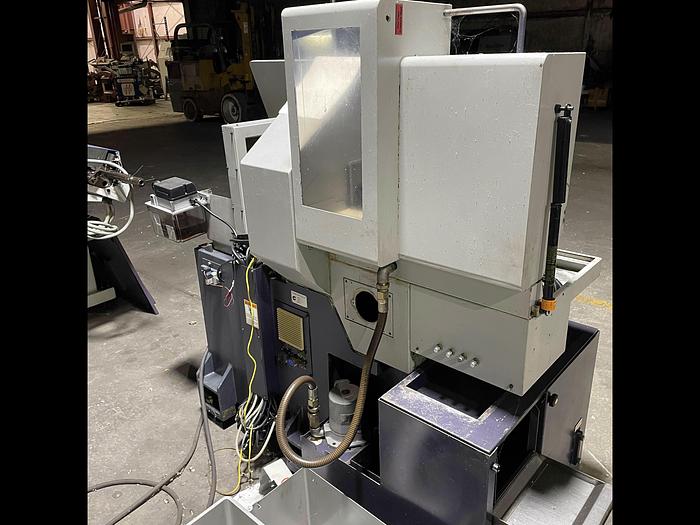

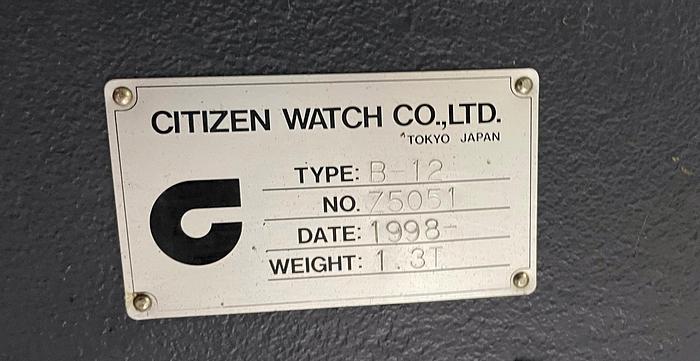

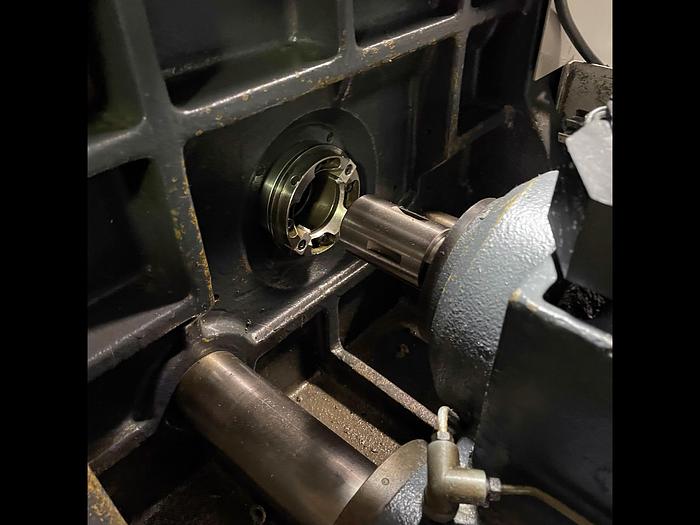

1998 Citizen B-12

Specs:

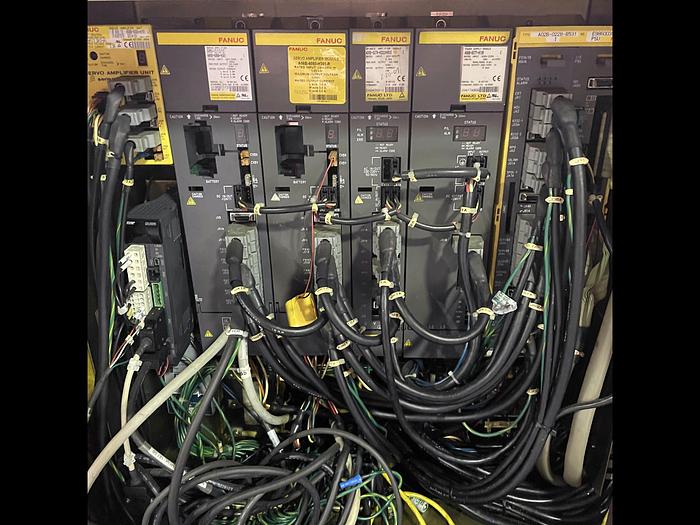

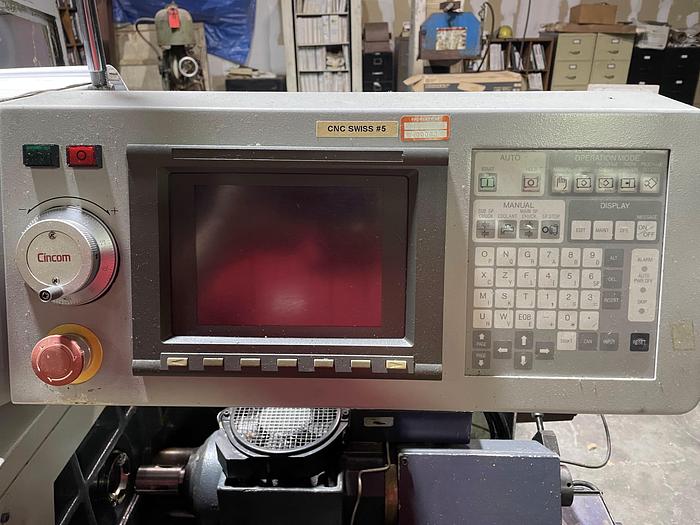

Control: Citizen (Fanuc)

Maximum Machining Diameter: 12mm

Maximum Machining Length: 5.31"

Main Spindle Speeds: 100 - 12,000 RPM

Main Spindle Indexing: 1 Degree

Back Spindle Speeds: 100 - 7,000 RPM

Rotary Tool Speeds: 100 - 4,500 RPM

Back Spindle Max Chucking Diameter: 12mm

Tool Shank/Sleeve Size: 3/8" Square / .75" Diameter

Rapid Traverse (X/Y/Z): 21 / 15 / 12 meters per minute

Main Spindle Drive: 2.2kw

Back Spindle Drive: .5 kw

Rotary Tool Drive: .4 kw

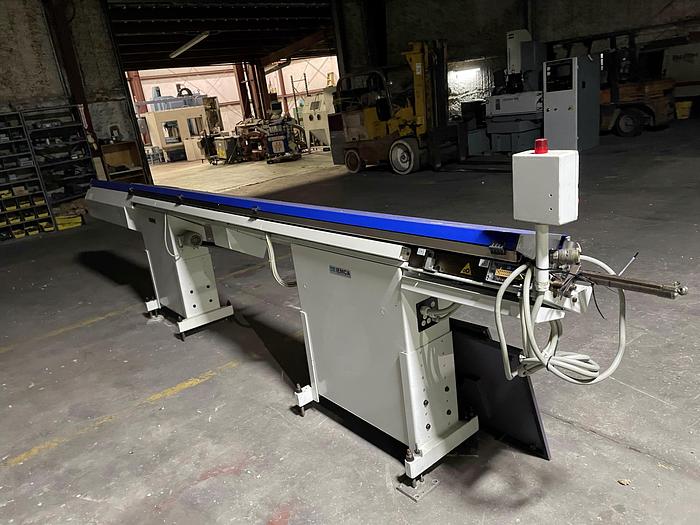

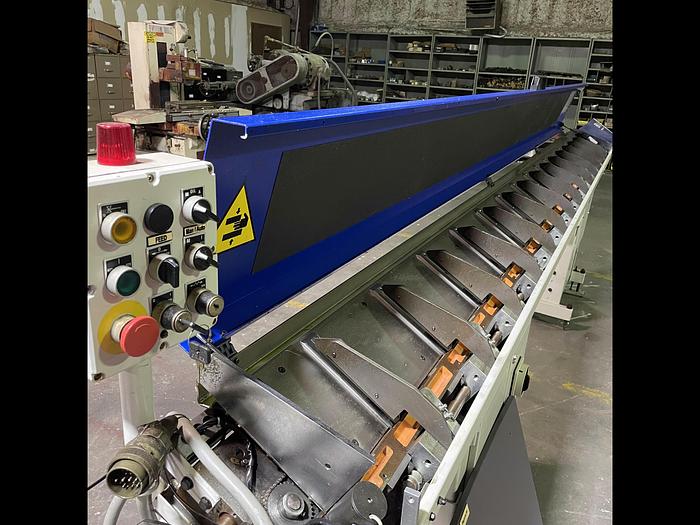

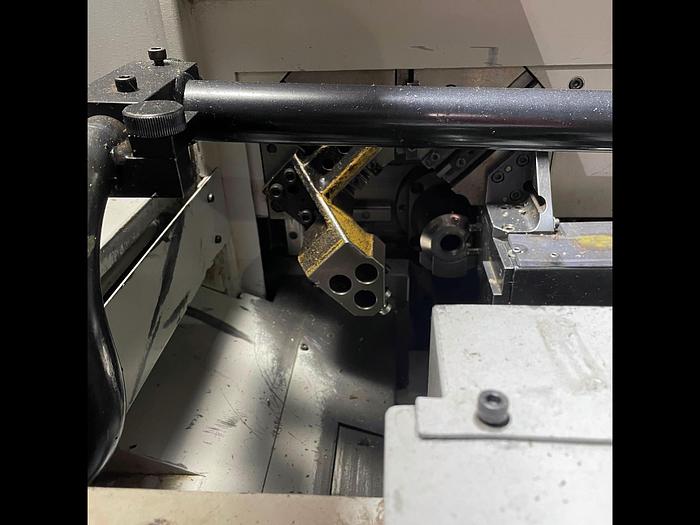

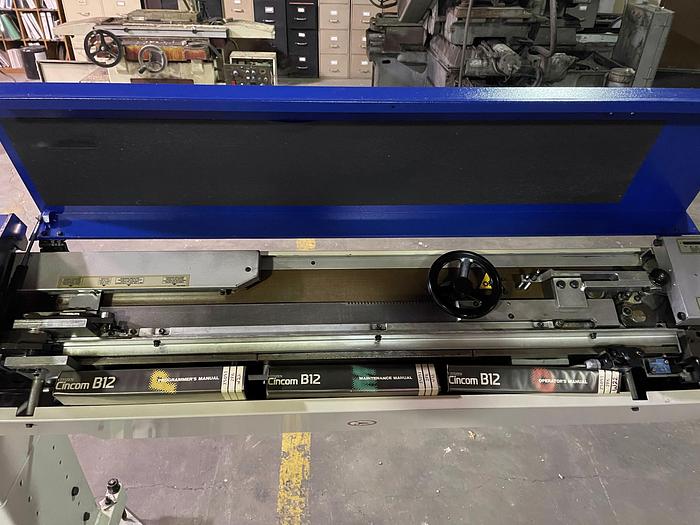

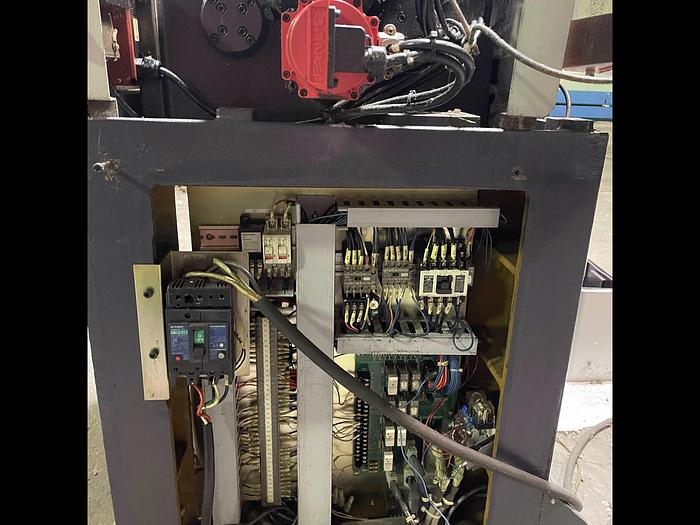

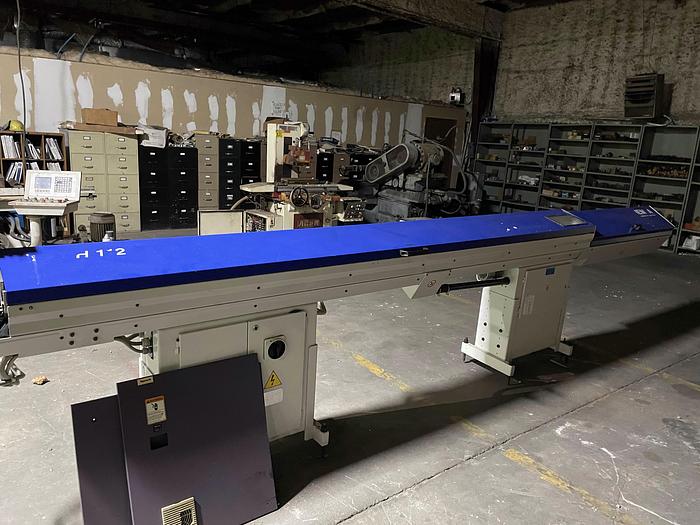

Equipped With: IEMCA 12' Bar Loader, Citizen CNC Control, (2) Live Milling Station on Main Spindle Slide, (4) Static Turning Positions on Main Slide, Sub-Spindle, Chamfer, Corner Round on Main, Continuous Threading, Tool Nose Radius Comp, 40mm Tape Memory, Manuals. Electrics: 220 Volt, 3 Phase Main Unit, Main Unit Dimensions (in inches): Length: 67" Width: 34" Height: 62" Additional Components: Roll Out Coolant tank:

Machine Dimensions: L: 22" W: 31" H: 35"

Machine Weight: 2,600lbs
