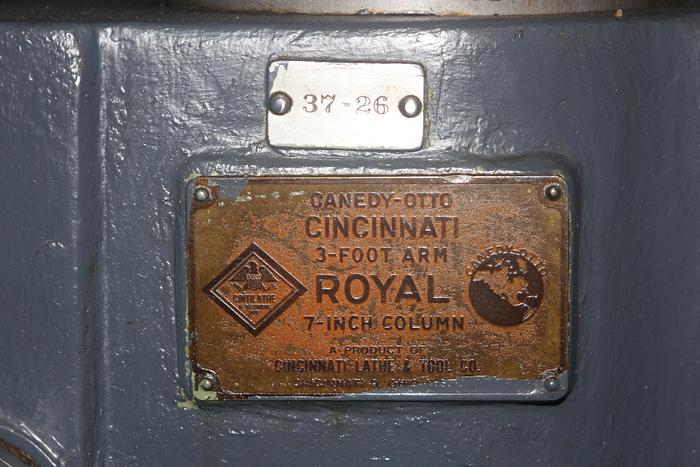

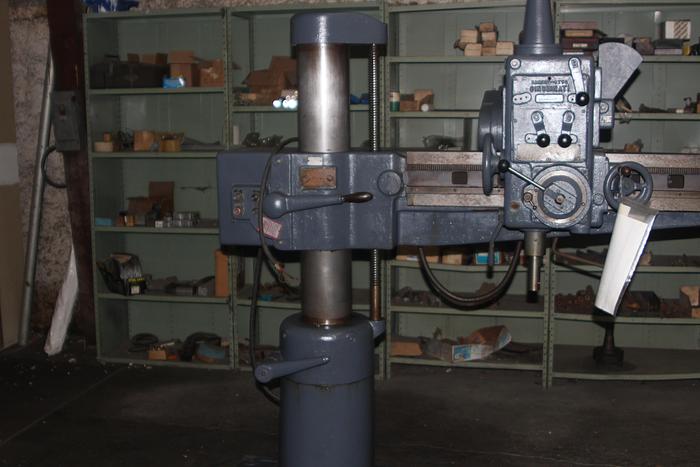

Cincinnati Radial Drill | 3' x 7'

$2,100 (USD)

Helena, AL

orCall 205-664-9644

Description

YouTube Video: Specifications: Drilling Capacity...................................1" Cast Iron Tapping Capacity....................................SAE 3/4" Cast Iron Spindle . 3 Morse Taper Diameter Of Column..................................7" Length Of Arm.......................................3' Spindle Travel......................................10-1/2" Diameter Of Spindle Nose............................1-1/2" Bearing Of Arm On Column............................13" Traverse Of Arm On Column...........................23" Traverse Of Head On Arm.............................26-1/2" Min. Distance Center Of Spindle To Face Of Column...10" Max. Distance Center Of Spindle To Face Of Column...36-1/2" Max. Distance Spindle To Base.......................50-3/4" Min. Distance Spindle To Base.......................18" Overall Height Of Drill Column......................75-1/2"


Freight charges are not included in sale price. Freight scheduling and costs are responsibility of the buyer. Packaging charges to ensure safety of equipment during transport for arrival on buyers truck will be added when applicable.

Specifications

ManufacturerCincinnati
ModelRadial Drill
ConditionUsed
Stock Number7633
