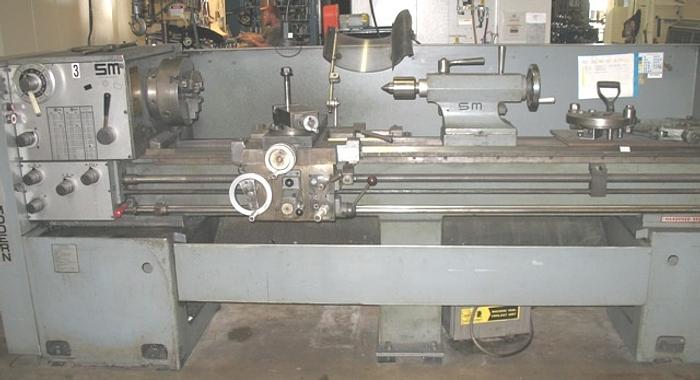

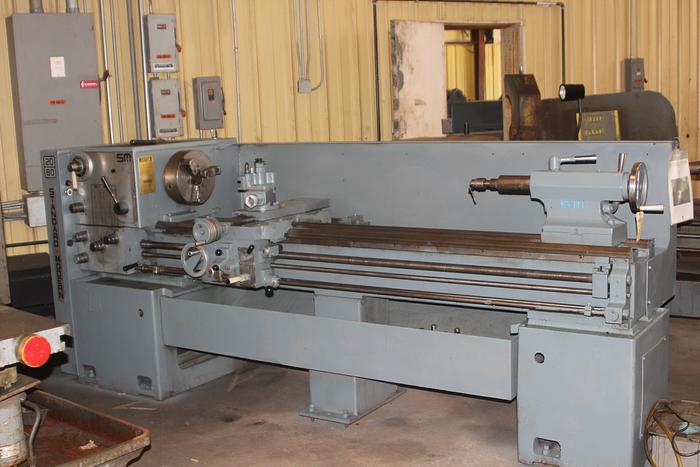

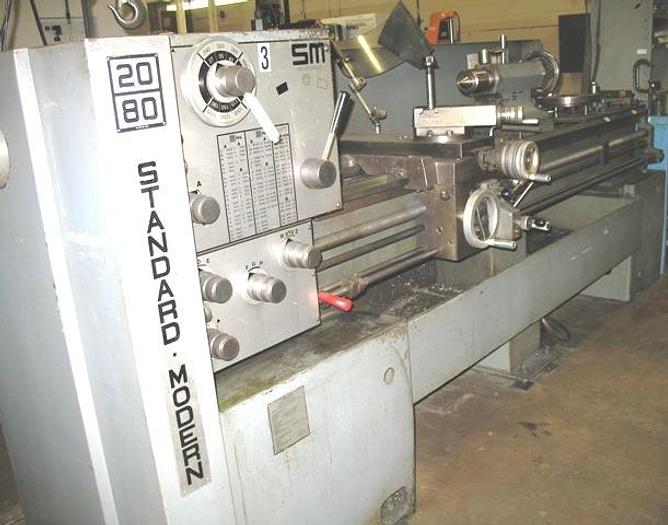

1979 Standard Modern 20" x 80" Lathe

$10,500 (USD)

Helena, AL

orCall 205-664-9644

Description

Made In Canada Year 1979 Machine Specifications: SWING OVER BED: 22" SWING OVER BED AND SADDLE WAYS: 20" SWING OVER CROSS SLIDE: 12" CENTER DISTANCE: 80" MAIN DRIVE MOTOR: 15 HP BAR CAPACITY 3" HEADSTOCK SPINDLE SPEEDS (18): 27 - 1600 RPM SPINDLE NOSE - CAMLOCK: D1-8" THROUGH HOLE IN SPINDLE: 3.06" SPINDLE CENTER: #5 MT GEAR BOX FEED AND THREAD SELECTIONS: 66 INCH FEED RANGE: .0015 - .105 IPR INCH THREAD RANGE: 2 TO 127 TPI METRIC FEED RANGE: .04 TO 2.67 MM/REV METRIC LEAD RANGE: .2 TO 14 MM APRON HANDWHEEL - ONE REVOLUTION: 1" HALF NUTS: DOUBLE HIGH SPEED THREADING TO: 800 RPM REPEATABILITY OF AUTO CARRIAGE STOP: +.005" FEED TORQUE CONTROL: VARIABLE CARRIAGE CROSS-SLIDE CARRIAGE LENGTH ON BED: 21" CARRIAGE BRIDGE WIDTH: 10" CROSS-SLIDE LENGTH: 24" CROSS-SLIDE TRAVEL: 12" COMPOUND TRAVEL: 5" DIRECT READING DIAL GRADUATION: .001" TAILSTOCK QUILL DIAMETER: 2.94" QUILL TRAVEL: 8" MORSE TAPER: #5 MT OFFSET: +.75" BED AND BASE BED WIDTH: 14" BED DEPTH: 12-1/2" BED LENGTH: 124"

Specifications

ManufacturerStandard Modern
Model20" x 80" Lathe
Year1979
ConditionUsed
Stock Number6990
