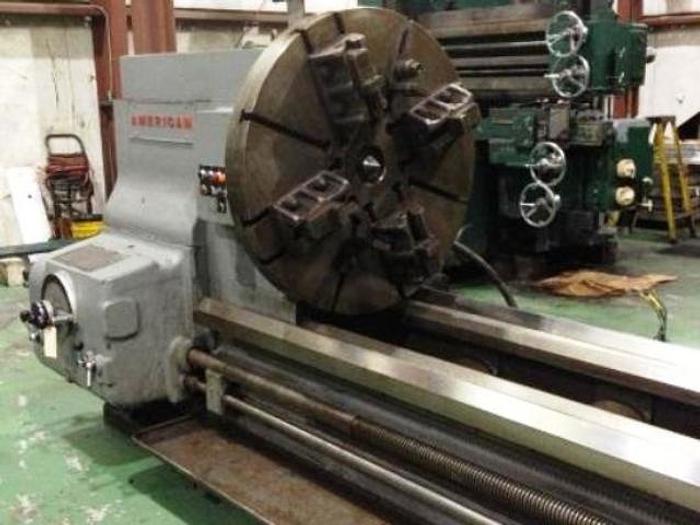

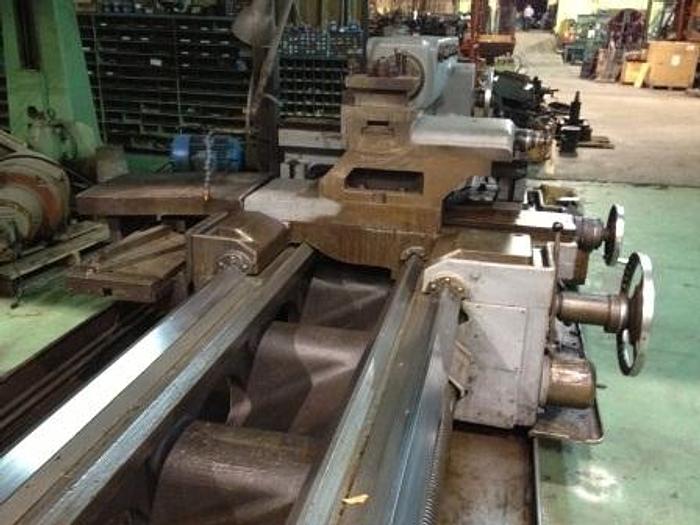

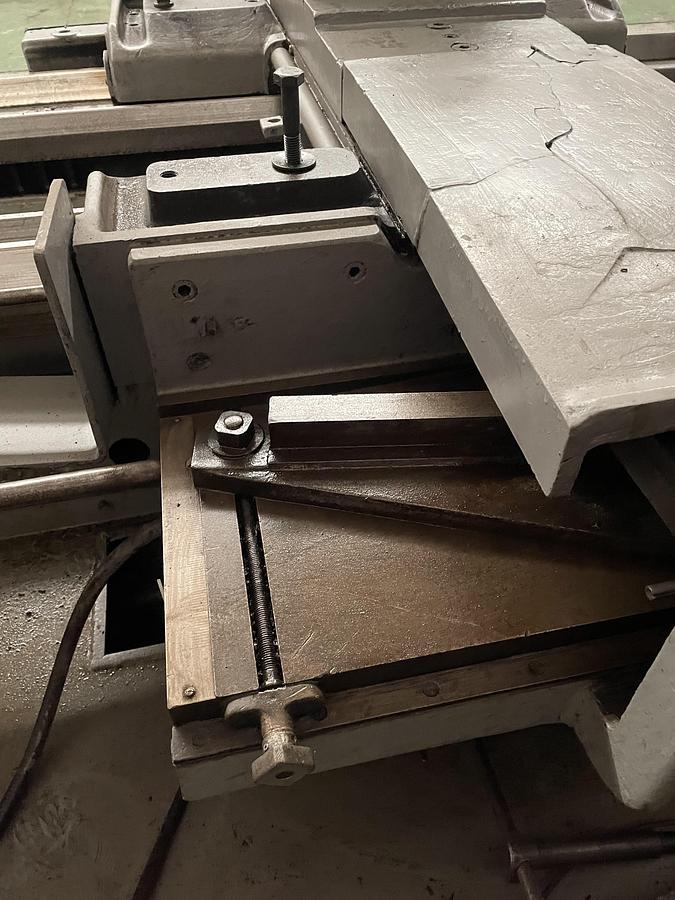

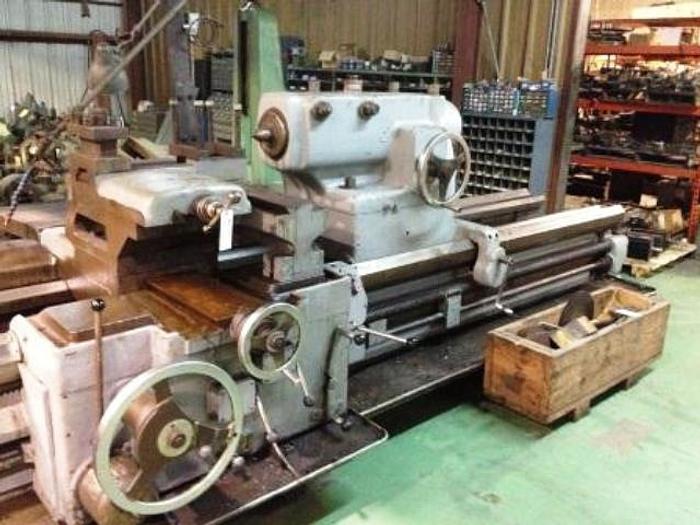

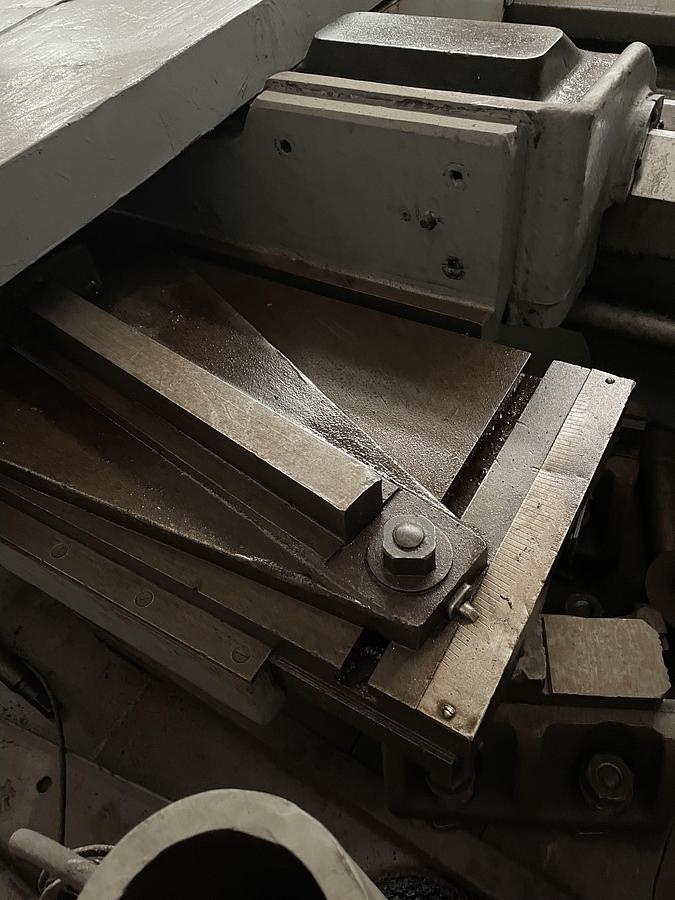

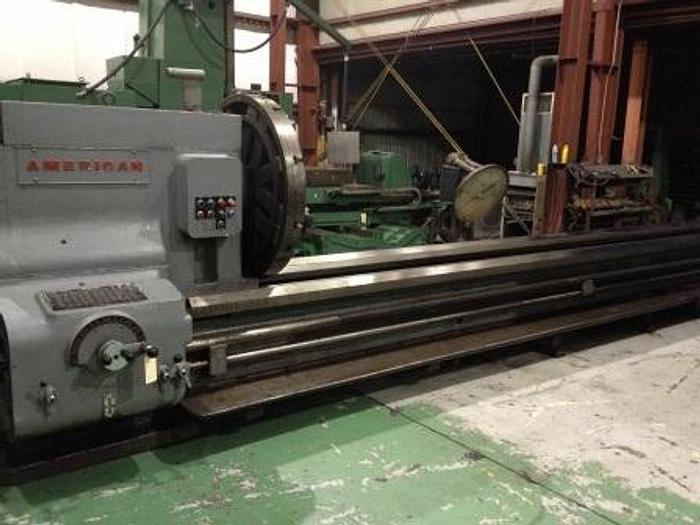

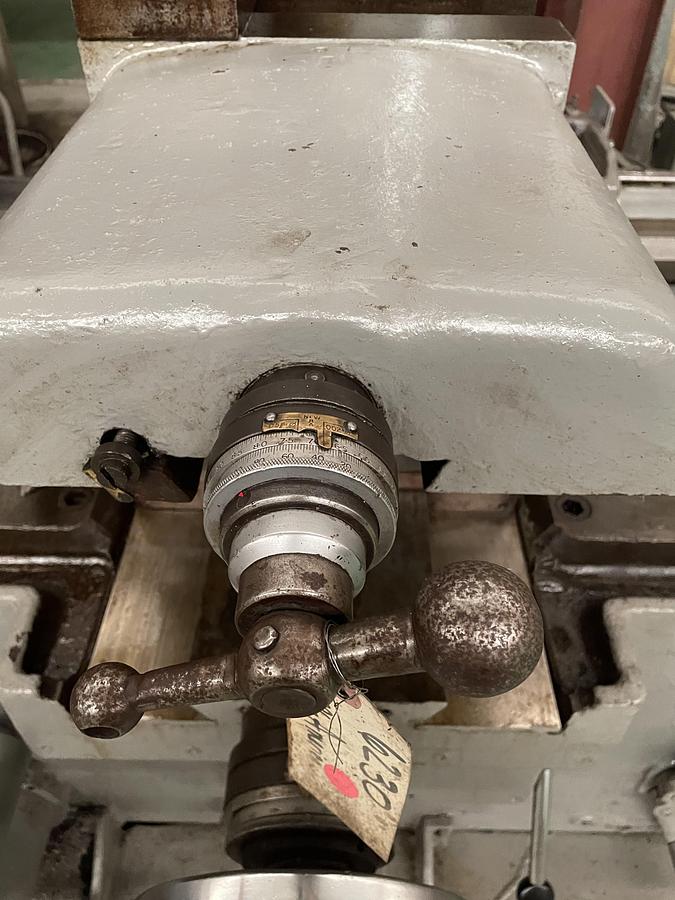

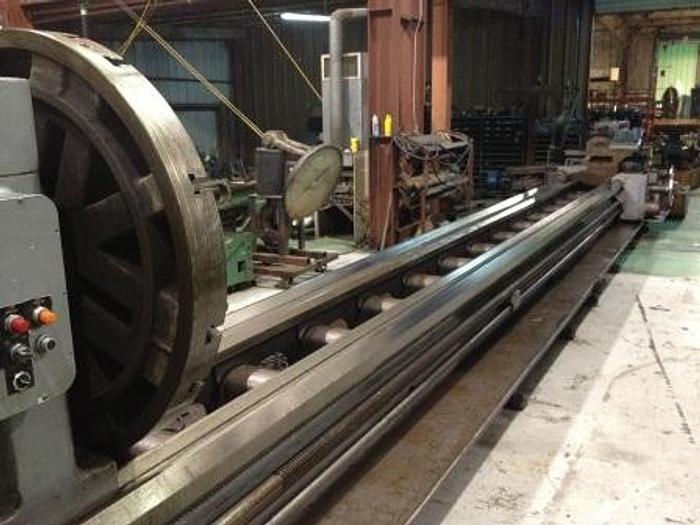

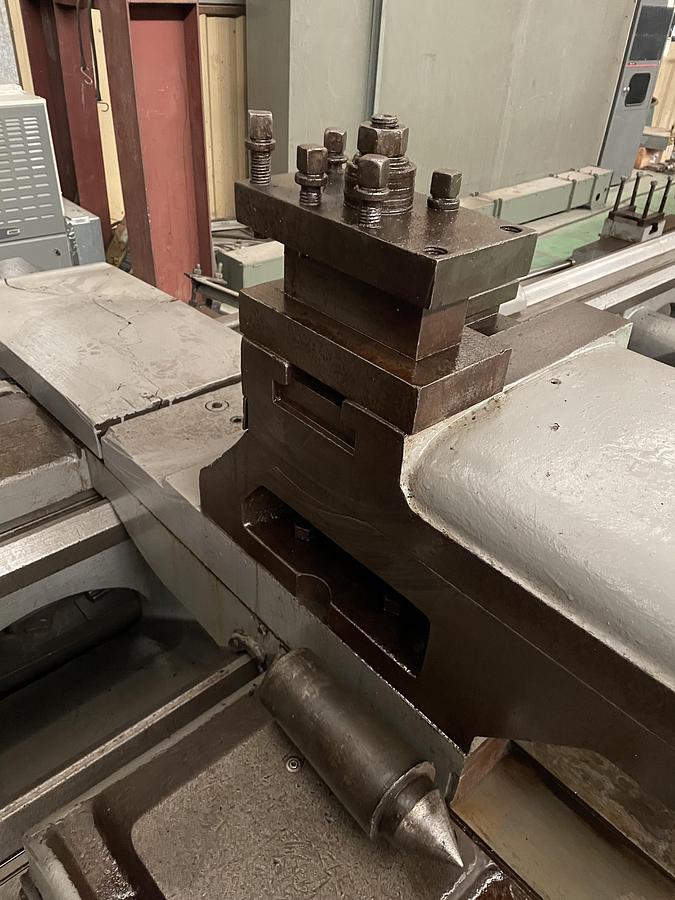

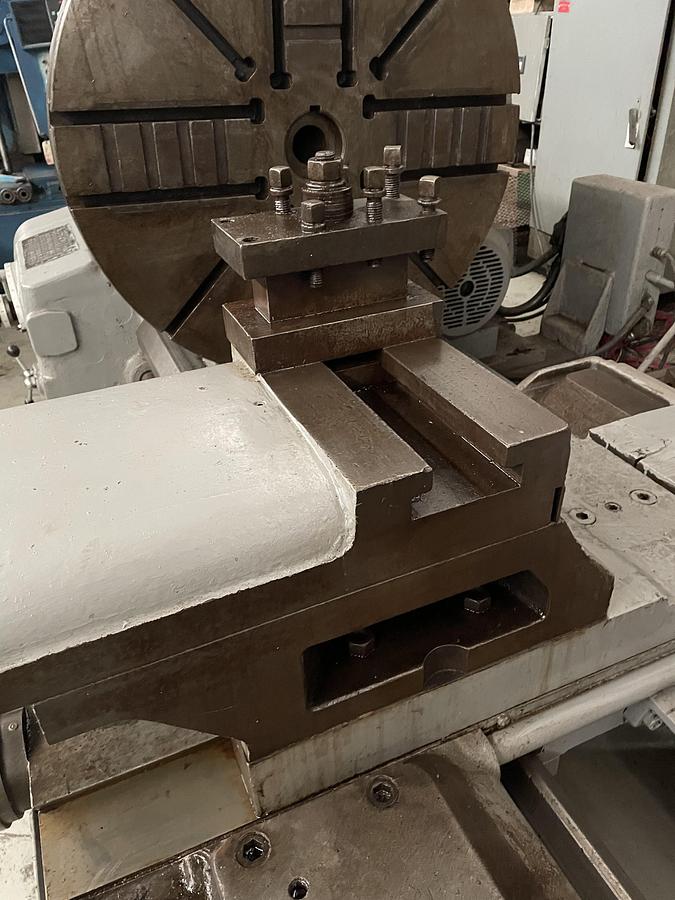

46" x 396" AMERICAN MODEL 4025-31, 31" OCS, TAPER, 1978

$89,900 (USD)

Helena, AL

orCall 205-664-9644

Description

SPECIFICATIONS:

Swing Over Bed: 46 1/2"
Swing Over Carriage Wings: 44"
Swing Over Cross Slide: 31"
Center Distance (33 ft): 396"
Domestic Shipping Weight: 54,550 lbs
Max Size Motor Recommended: 60 HP
Coolant Capacity - Base Length: 60 Gal
Length of Bed: 49 1/2"
Hole in Spindle: 2 7/8"
Number of Spindle Speeds: 27
Taper of Center: #6MT
High Range 27 Speed Head: 9 - 900 RPM
Medium Range 27 Speed Head: 71/2 - 750 RPM
Low Range 27 Speed Head: 6 - 600 RPM

Spindle Radial Load Capacity
Front Bearing at 100 RPM: 53,300 lbs
Center Bearing at 100 RPM: 29,300 lbs

Spindle Thrust Load Capacity
Front Bearing at 100 RPM: 47,600 lbs

Specifications

ManufacturerAmerican
Model4025-31
Year1978
ConditionUsed
Stock Number6230
