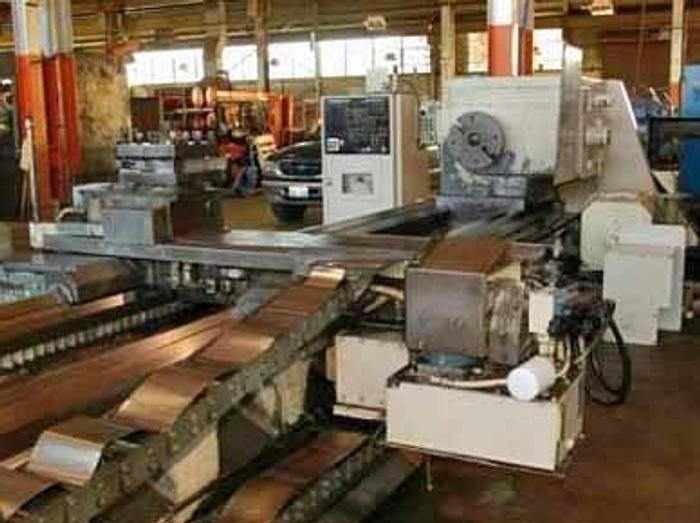

45" x 204" AMERICAN 25" SOC, BALLSCREWS, 75HP, GE MK Century 550 Control

Contact us for price

Helena, AL

orCall 205-664-9644

Description

SPECIFICATIONS:
SWING OVER BED ---------------------------- 45"
SWING OVER CARRIAGE WINGS ----------------- 45"
SWING OVER CROSS SLIDE -------------------- 25"
DISTANCE BETWEEN CENTERS ------------------ 204"
HOLE THROUGH THE SPINDLE ------------------ 3"
SPINDLE NOSE ------------------------------ A1-15
SPINDLE SPEED RANGE ----------------------- 4 TO 600 RPM
DRIVE ------------------------------------- 75 HP 480/3/60
APPROX. WEIGHT WITH MOTOR & ACCESSORIES --- 58,000 LBS
APPROXIMATE MACHINE WEIGHT ---------------- 47,000 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 346"(LR) X 117"(FB) X 78"(H)
EQUIPPED WITH ---

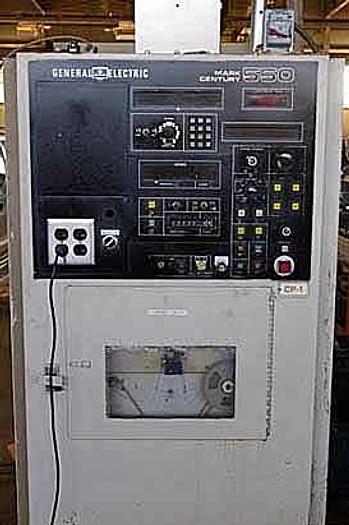

G.E. MARK CENTURY 550 NC CONTROL
BALLSCREWS
24" 3 JAW CHUCK
27" 4 JAW CHUCK
14" 3 POINT ROLLER STEADY REST
25" 4 POINT ROLLER STEADY REST
SQUARE TURRET TOOLPOST
TAILSTOCK

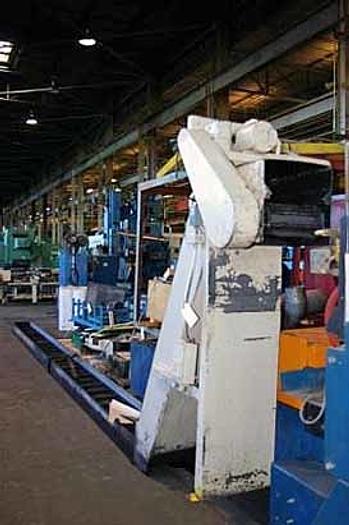

CHIP CONVEYOR
CHIP PAN
MACHINE IS OFFERED AS IS, AS INSPECTED.

Specifications

Conditionused
Stock Number5605
