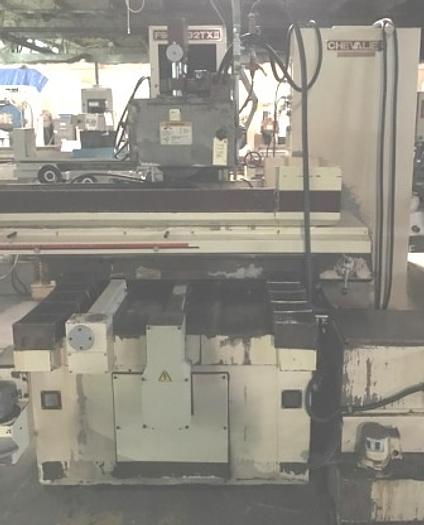

16" x 32" Chevalier FSG-1632TXII CNC Hydraulic Grinder, Fanuc CNC, 2000

Contact us for price

Helena, AL

orCall 205-664-9644

Description

Model 1632 TXII
Year: 2000
YouTude Video:

Machine Specifications:
MAX. GRINDING CAPACITY -------------------- 16" X 32"
MAX. DISTANCE SPINDLE CENTER TO TABLE TOP - 24-3/8"
STANDARD GRINDING WHEEL ------------------- 14" X 2" X 5"
TABLE SPEED VARIABLE ---------------------- 16 TO 82 FPM
3 AXIS AUTOMATIC FEED WITH PLUNGE GRINDING
INCREMENTAL DOWN FEED TO WHEELHEAD
RAPID TRAVEL TO WHEELHEAD ----------------- 8 IPM
WHEELHEAD MOTOR --------------------------- 5 HP A.C.
TOTAL POWER REQUIRED ---------------------- 10 HP 220.VOLTS
APPROXIMATE MACHINE WEIGHT ---------------- 7825 LBS
APPROXIMATE MACHINE DIMENSIONS ------------ 105"(LR) X 76"(FB) X 88"(H)
CNC Control.................................Fanuc

Specifications

Conditionused
Stock Number7746
