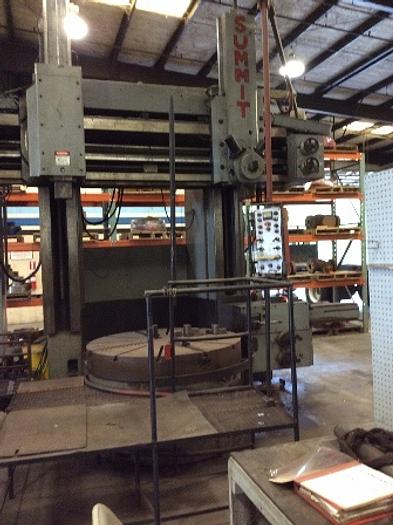

1976 Summit VBM | 59" 4 Jaw Chuck, 70" Swing, 47"UR, Ram, Turret & Side Heads

$55,000 (USD)

Helena, AL

orCall 205-664-9644

Description

S/N:15A-361 Year: 1976 (approx) CATALOGUE SPECIFICATIONS: Table Diameter......................................... 59" Swing Maximum, w/o Side Head........................... 70" Swing Maximum, w/Side Head............................. 65" Height Under Cross-Rail, Maximum....................... 47.25" Vertical Travel of Side Head........................... 45" Cross-Rail Travel, Vertical............................ 39" Ram-Head Travel, Vertical.............................. 33.5" Ram-Head Swivel, Degrees............................... 35-DEGREES Side-Head Travel, Vertical............................. 45" Side-Head Travel, Horizontal........................... 26.5" (18) Table Speeds, Range............................... 4 to 165 RPM Feeds, Range........................................... 0.05 to .50 IPR Cross-Rail Speed....................................... 14 IPM Rapid Traverse Rate.................................... 98 IPM Main Motor, Horsepower.................................

Specifications

ManufacturerSummit
ModelVBM
Year1976
ConditionUsed
Stock Number7727
