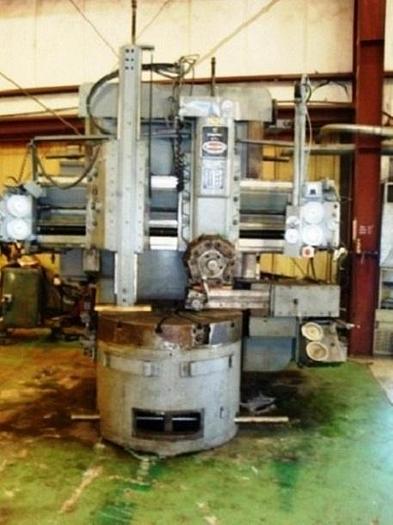

46" BULLARD DYNATROL, 40"UR, 3-Jaw,Turret, Ram & Side Head, 1967

$22,500 (USD)

Helena, AL

orCall 205-664-9644

Description

SPECIFICATIONS:
Chuck Diameter: 46"
Max. Swing with Side Head in Position: 49"
Max. Swing with Side Head Below Table: 58"
Chuck Speeds: 20 from 9 to 313 RPM
Feed Range: Variable 0.001 to 250 IPR
Max. Height Under Cross Rail: 40"
Max. Height Under Turret Head: 36"
Vertical Side Head Travel: 38.75"
Horizontal Side Head Travel: 23.75"
Main Drive Motor: 50 HP
Present Electrical Arrangements: 440/ 3/ 60
Weight (approx.): 46,000 lbs
Dimensions (approx.): 136" x 114" x 135"

EQUIPPED WITH:
Pendent Control Station

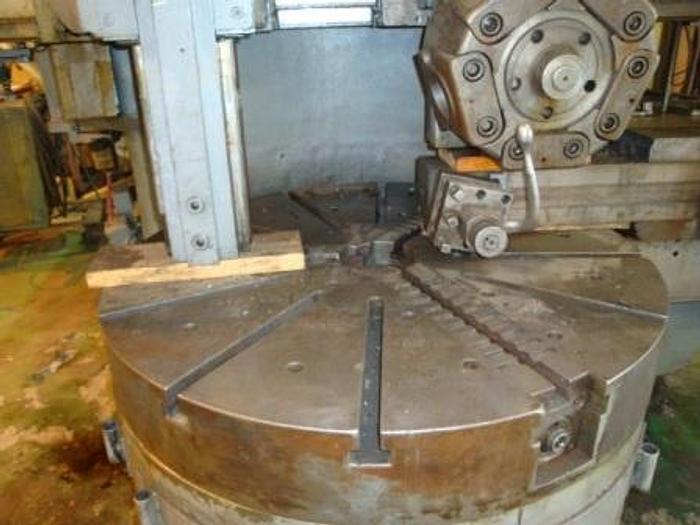

46" 3-Jaw Chuck

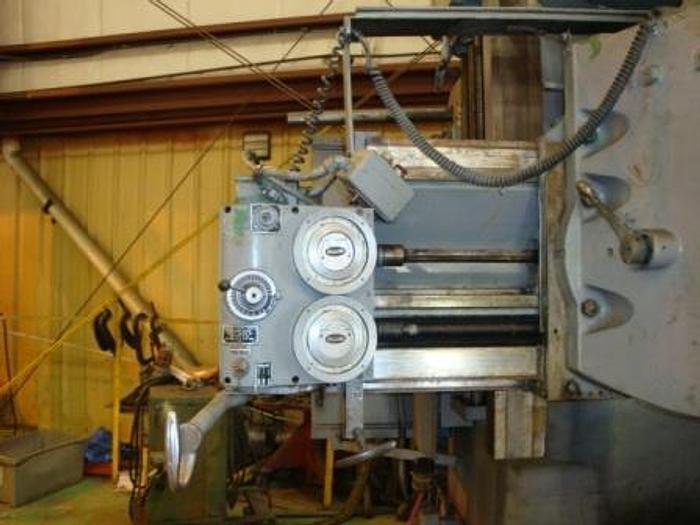

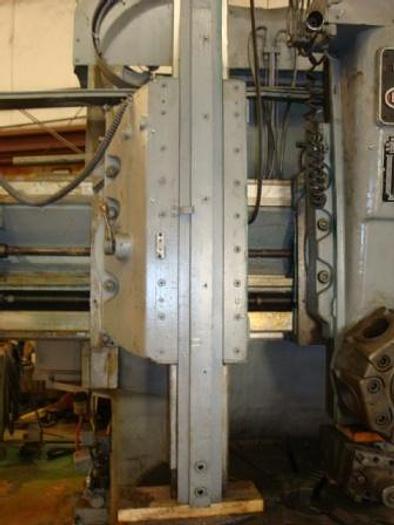

Side Head

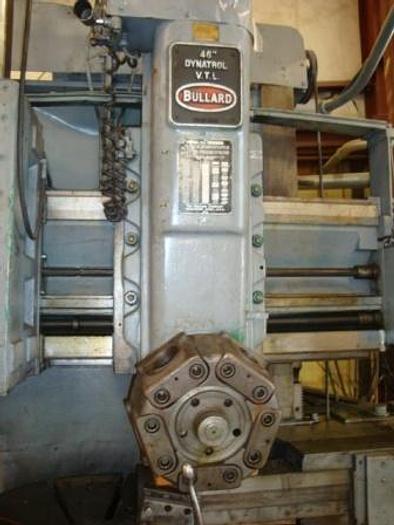

Turret Head
Ram Head
Coolant Pump
Lube System

Note: Turret & Ram swivel to cut a taper

Specifications

ManufacturerBullard
Year1967
ConditionUsed
Stock Number4890
