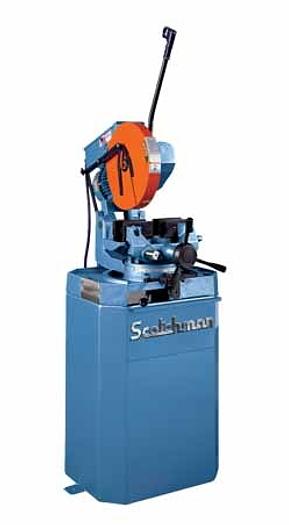

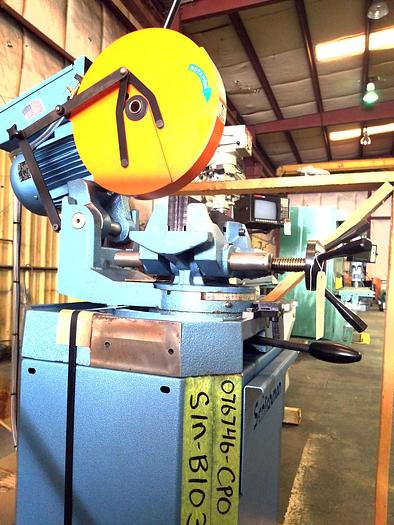

14" Scotchman CPO 350 Mitre Cold Saw, LT, 460V

Contact us for price

Helena, AL

orCall 205-664-9644

Description

Model: CPO 350 LT
Year: 2015
Cutting Speeds Must Specify when Ordering
LT(Low Turn) designed for solid mild steel, solid stainless steel & thick wall
pipe LT (Low Turn)
22 rpm / 44 rpm Motor rate: 3 hp
HT(High Turn) designed for thin wall tube .060 wall thickness or thinner and
non-ferrous material HT (High Turn) 44 rpm / 88 rpm Motor rate: 2.5 hp
VS (Variable Speed) ~ wired 230/460, 3-ph VS (Variable Speed) 11 / 177 rpm
Motor Rate: 5 hp
VS (Variable Speed) ~
wired 220, 1-ph VS (Variable Speed) ~
11 / 177 rpm Motor Rate: 5 hp
SS (Single Speed) designed for 220v 1 ph applications SS (Single Speed) 44
rpm Motor Rate: 3 hp
TUBING
Round
Square
Rectangle
SOLID
Round
Square 90 Degree
4-1/2" (114 mm)
4-1/4" x 4-1/4" (108 x 108 mm)
5-1/2" x 4" (140 x 102 mm)
90 Degree
2" (51 mm)
2" x 2" (51 x 51 mm) 45 Degree
4" (102 mm)
3-3/4" x 3-3/4" (96 x 96 mm)
3-3/4" x 3-3/4" (96 x 96 mm)
45 Degree
1-3/4" (44 mm)
1-3/4" x 1-3/4" (44 x 44 mm)
Factory Wired Specify
208 3 ph
230 3 ph
460 3 ph

Specifications

Conditionused
Stock Number7544
