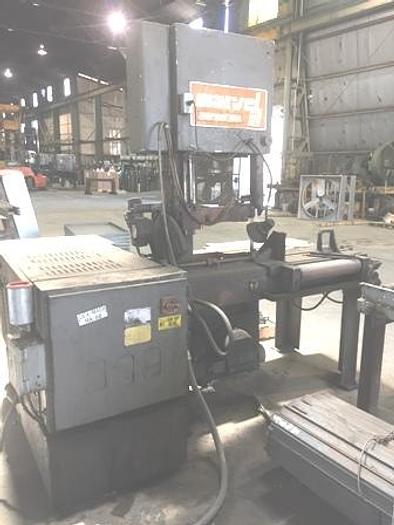

18" X 25" Marvel 81A Vertical Band Saw, 1980

Contact us for price

Helena, AL

orCall 205-664-9644

Description

Specifications:+
+
Blade Length...............................14'6" x 1 1/4" x .042"+
Table Work Surface.........................33" LR x 30" FB+
Hydraulic Vise Opens To....................21 1/2"(Max.)+
Blade Speeds(Inf.Variable).................60-400FPM+
Feeds(Inf. Variable).......................0-300lbs+
Capacity on Table..........................7,000lbs+
Capacity, Nominal..........................18" x 20"+
Blade at 45 Left...........................18" x 11.5"+
Blade at 45 Right..........................18" x 13.5"+
Maxium Length per Index....................24"+
+
Overall Dimensions(approximate)............94" LR x 66" FB x 92" H+
Weight.....................................8,600 lbs (approx)+
460V/3Hp/60Hz
+

Specifications

Conditionused
Stock Number7113
