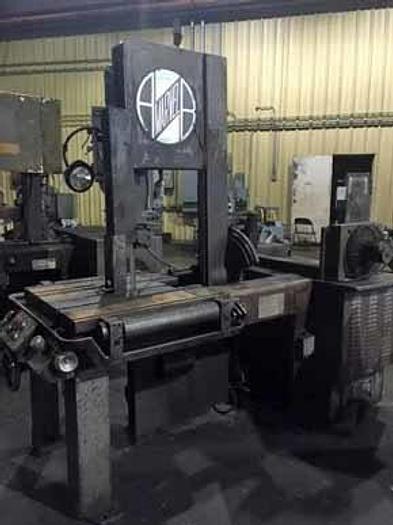

18" x 25" Marvel 81 Vertical Band Saw, 1978

Contact us for price

Helena, AL

orCall 205-664-9644

Description

Specifications:
Blade Length...............................14'6" x 1 1/4" x .042"
Table Work Surface.........................33" LR x 30" FB
Hydraulic Vise Opens To....................21 1/2"(Max.)
Blade Speeds(Inf.Variable).................60-400FPM
Feeds(Inf. Variable).......................0-300lbs
Capacity on Table..........................7,000lbs
Capacity, Nominal..........................18" x 20"
Blade at 45 Left...........................18" x 11.5"
Blade at 45 Right..........................18" x 13.5"
Maxium Length per Index....................24"
Equipped With:
Model Maglube-Lub System(Model Mag 2-9), S/N: 11849
Overall Dimensions(approximate)............94" LR x 66" FB x 92" H
Weight.....................................8,600 lbs (approx)

Specifications

Conditionused
Stock Number7483
