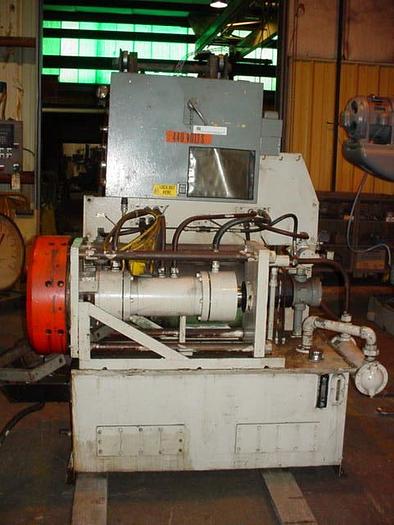

RESENER MODEL I/O 3 HEAVY DUTY HYDRAULIC TUBE END FORMER & SIZER

Contact us for price

Helena, AL

orCall 205-664-9644

Description

MODEL: I/O 3
SPECIFICATIONS:
Max. Diameter ..................... 3" O.D. x 13 Ga.
Min. Diameter ..................... 1/2" O.D. x 13 Ga.
Max. Work Length (approximate) .... 4"
Min. Diameter Expansion ........... 1-1/4" Min.
Diameter Reduction ................ 1/2"
Overall Dimensions (approximate) .. 65" L-R x 48" F-B x 82" H
Weight (approximate) .............. 4000 lbs
TYPICAL APPLICATIONS OF MACHINE:
Expansion and/or Reduction using Segmented Tooling
EQUIPPED WITH:
Allen-Bradley SLC-100 Programmable Controller
Cycle Selector Switch: 1 2 or 3 Hits
30 HP AC Main Pump Motor
Built-In Filter Unit
Electrical Controls
Push Button Operations

Specifications

Conditionused
Stock Number4782
