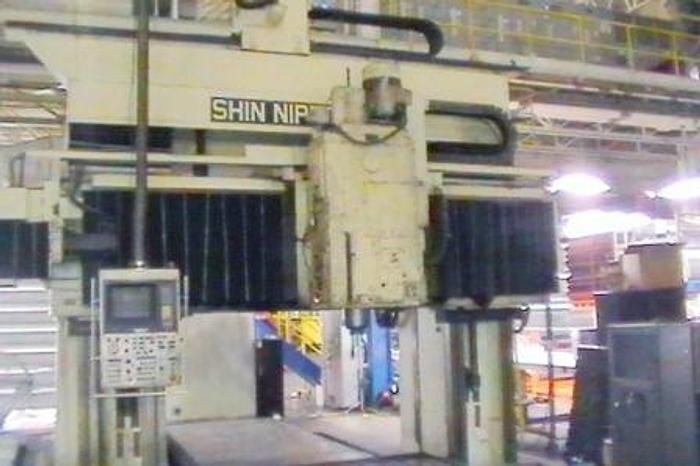

1985 Shin Nippon Koki HF-4PK Gantry Mill | 157 X 79 X 51,157 X 79 TABLE,33,000 LB LOAD,FANUC 12M

Contact us for price

Helena, AL

orCall 205-664-9644

Description

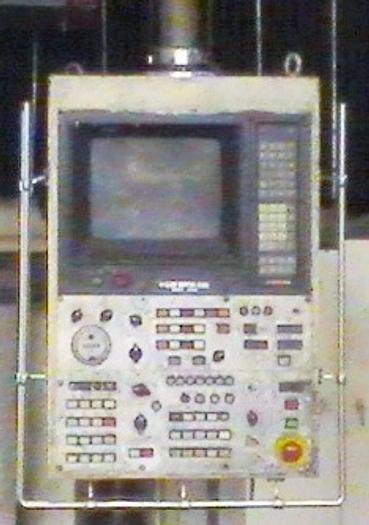

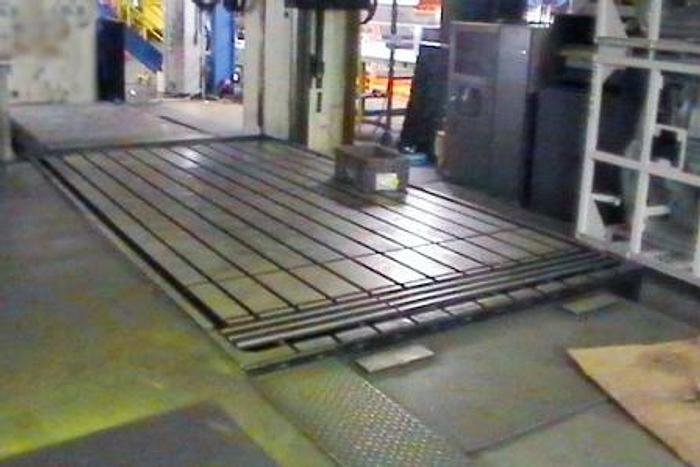

SHIN NIPPON KOKI (SNK)HF-4PK, 157 X 79 X 51, 157 X 79 TABLE, 33,000 LB LOAD, FANUC 12M, TRACER, 2000 RPM SPECIFICATIONS: MANUFACTURER........................ SNK (SHIN NIPPON KOKI) MODEL............................... HF-4PK AGE................................. 1985 TABLE SIZE.......................... 79" X 157" (2,000 X 4000 mm) COPYING RANGE....................... 157" X 79" X 51" 4,000 X 2,000 X 1,300 mm DISTANCE BETWEEN COLUMNS............ 102" (2,600 mm) DISTANCE FROM TABLE TO SPINDLE END.. 71" (1800 mm) MAX. TABLE LOAD..................... 33,000 LBS (15,000 KG) MAX. AUX (COPY) TABLE LOAD.......... 11,000 LBS (5,000 KG) SPINDLE SPEED RANGE................. 40 - 2,000 RPM SPINDLE............................. 50 NST MAIN DRIVE MOTOR.................... 30 HP (22 KW) EQUIPPED WITH: FANUC 12M CONTROL TRACER HEAD ADJUSTABLE RAIL HEAD MACHINE IS DISMANTLED AND READY FOR LOADING

Specifications

ManufacturerShin Nippon Koki
ModelHF-4PK Gantry Mill
Year1985
ConditionUsed
Stock Number6261
