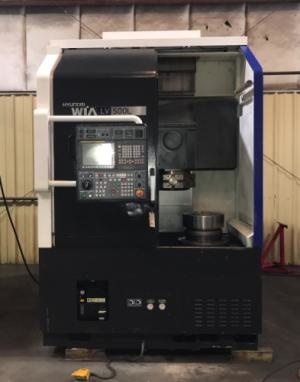

15" HYUNDAI WIA LV500L CNC Vertical Turret Lathe, Fanuc 32i A CNC, 2012
No longer available
15" HYUNDAI WIA LV500L CNC Vertical Turret Lathe, Fanuc 32i A CNC, 2012
Helena, AL
Description
Model: LV500L
S/N: G3197-0416
Year: 2012
Specifications:
Max Turning Diameter........................21.6"
Max Turning Length...........................23.6"
Chuck Size...................................15"
Driving Method...............................Belt
Spindle RPM..................................2,000 r/min
Spindle Output...............................22 kw
Spindle Torque...............................824 N.m
Travel(X/Z)..................................12.7"/24.6"
Rapid Travel(X/Z)............................20/18 m/min
Slide Type...................................LM
Turret.......................................8 Stations
Tool Size....................................1.9"
Electrics....................................220V/3Ph/60Hz
Motor........................................42.9Hp
Amps.........................................84
Overall Dimensions...........................75'W x 8'9"L x 9'H
Weight.......................................22500 Lbs(Approx)
Run Time...................
Specifications
| Condition | Used |
