Hitachi Seiki VM40J #7033 VM40J

$9,500 (USD)

Helena, AL

orCall 205-664-9644

Description

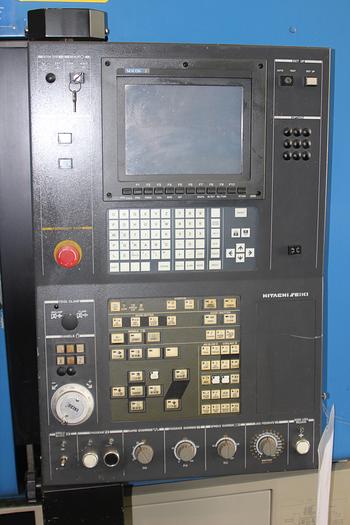

16 TOOL CHANGER, YASKAWA I80 CONTROL, 22 X 16 TRAVEL,

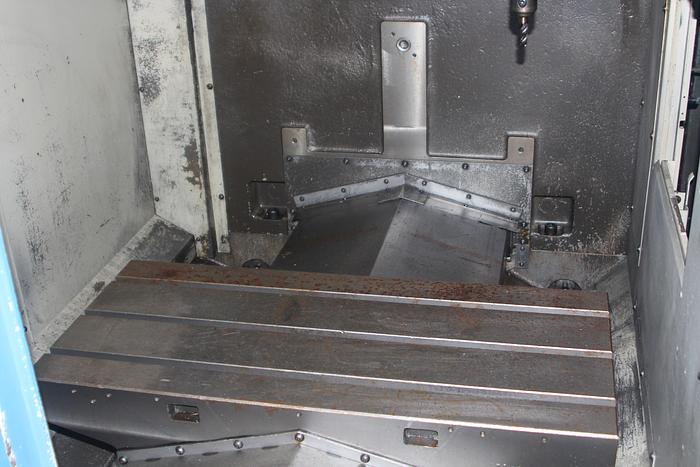

TABLE DIMENSIONS................. 35.4 x 16
TABLE LOAD CAPACITY.............. 770 LBS.
AXIS TRAVELS X,Y,Z............. 22, 16, 16
DIST. FROM TABLE TO SPINDLE NOSE. 6 - 22
SPINDLE SPEED.................... 8000 RPM
SPINDLE TAPER.................... CAT #40
RADID TRAVERSE................... 1417 IPM
CUTTING FEED RATE................ .4 - 590 IPM
TOOL STORAGE CAPACITY............ 20 ATC
MAX. TOOL DIAMETER............... 3.7/4.9
MAX. TOOL LENGTH................. 9.8
MAX. TOOL WEIGHT................. 22 LBS.
MAIN MOTOR....................... 7.5/10 HP AC
MACHINE DIMENSION......... 82.7 x 89 x 101
MACHINE WEIGHT................... 10582 LBS.

Specifications

ManufacturerHitachi Seiki VM40J #7033
ModelVM40J
ConditionUsed
Stock Number7033
