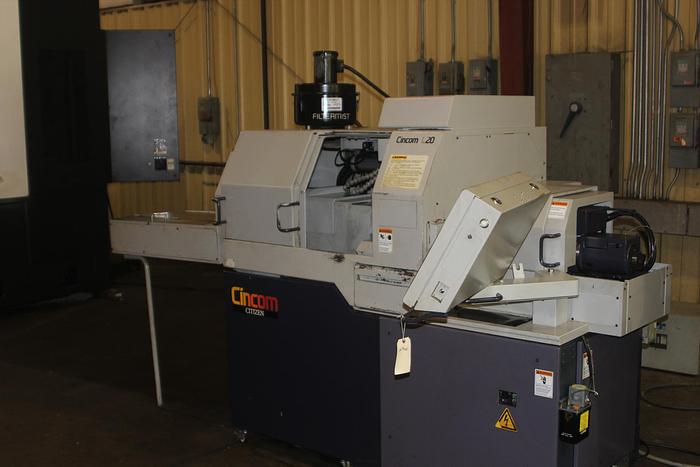

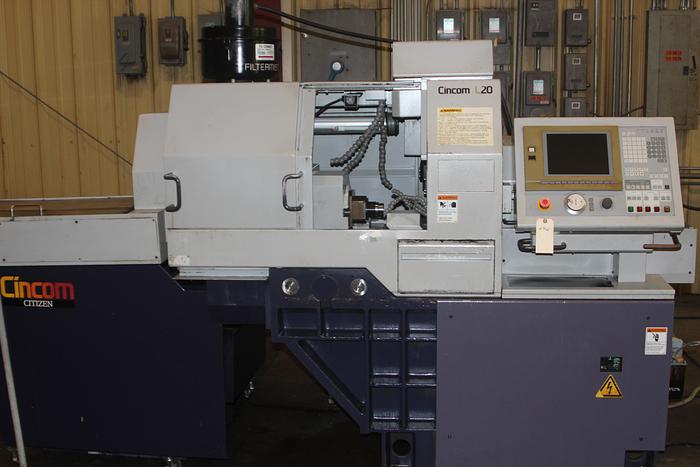

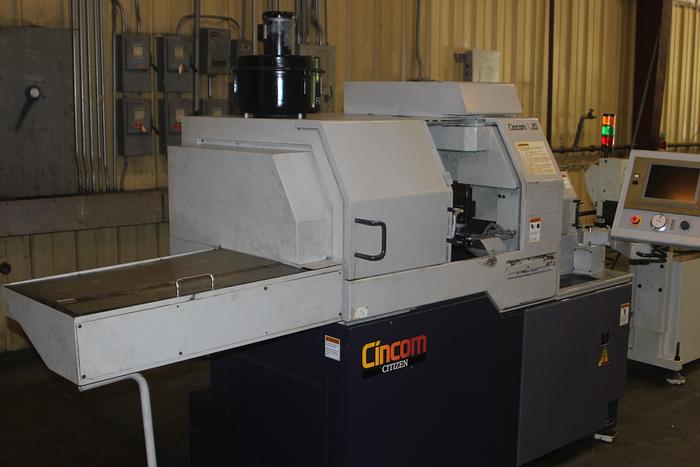

1998 Citizen L20 #9021 L20 VII

$29,900 (USD)

Helena, AL

orCall 205-664-9644

Description

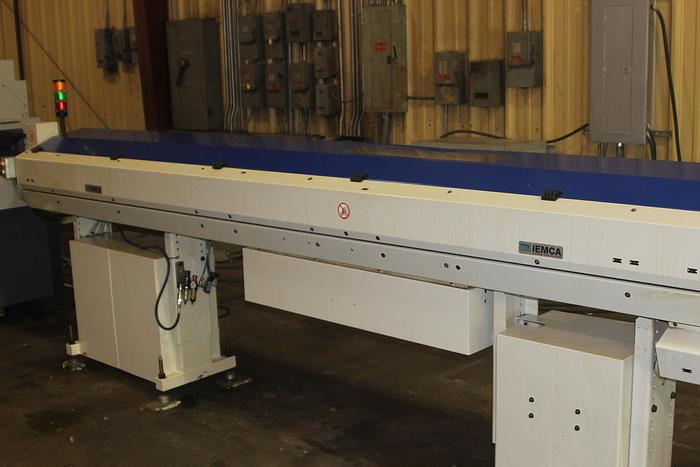

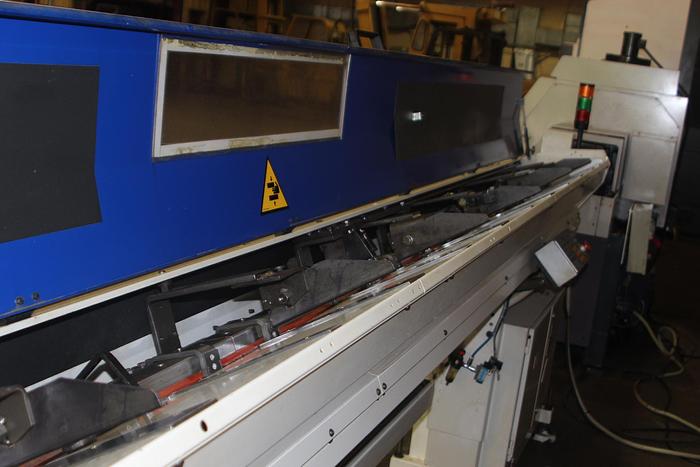

IEMCA 332 MAGAZINE, BAR LOADER, PARTS CATCHER, LONG WORKPIECE TRAY, MIST COLLECTOR SYSTEM, MANUAL, EXTRA TOOLING, CHANNEL GUIDES, SPINDLE LINERS

Maximum machining diameter : 20mm
Maximum machining length : 200mm/1chuck
Maximum drilling diameter for main spindle : 10mm
Maximum tapping diameter for main spindle(tap,die) : M8
Main Spindle through-hole diameter : 26mm
Spindle speed : Max.10,000min-1
Maximum drilling diameter for gang rotary tool : 8mm
Maximum tapping diameter for gang rotary tool : M6
Gang rotary tool spindle speed : Max.6,000min-1
Rotary tool spindle speed of the opposed tool post : -
Maximum tapping diameter for rotary tool of the opposed tool post  : -
Rotary tool spindle speed of the opposed tool post : -
Maximum drilling diameter for back tool post rotary tool   : 5mm(OP)
Maximum tapping diameter for back tool post rotary tool  : M4(OP)
Rotary tool spindle speed of back tool post  : Max.7,500min-1(OP)
Maximum chuck diameter of back spindle : 20mm
Maximum protrusion length of the back spindle workpiece : 30mm
Maximum drilling diameter in back machining process : 8mm
Maximum tapping diameter in back machining process : M6
Back spindle speed : Max.8,000min-1
Number of tools to be mounted : Max.37
Tool size :
Turning tool : 12mm(13mm, 16mm)
Sleeve : 25mm(GDS107,210)19.05mm
Rapid feed rate : 32m/min
Motors :
For spindle drive : 2.2/3.7kW
For tool spindle drive(gang tool post) : 1.0kW
For rotary tool drive of Back tool post  : 0.75kW(OP)
for rotary tool drive of the opposed tool post  : -
For back spindle drive : 0.75/1.5kW
For cutting coolant oil : 0.4kW
Input power capacity : 7.3kVA
Center height : 1,050mm
Weight : 2,350kg

Specifications

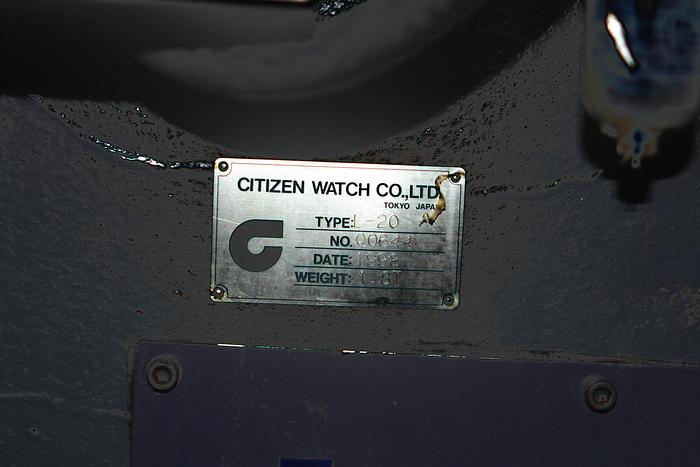

ManufacturerCitizen L20 #9021
ModelL20 VII
Year1998
ConditionUsed
Stock Number9021
