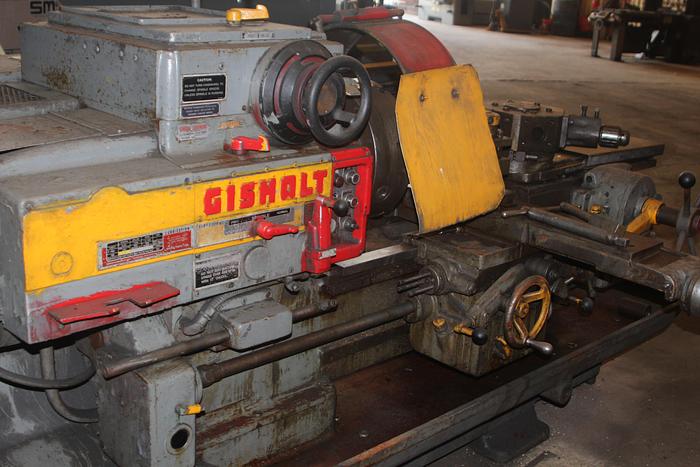

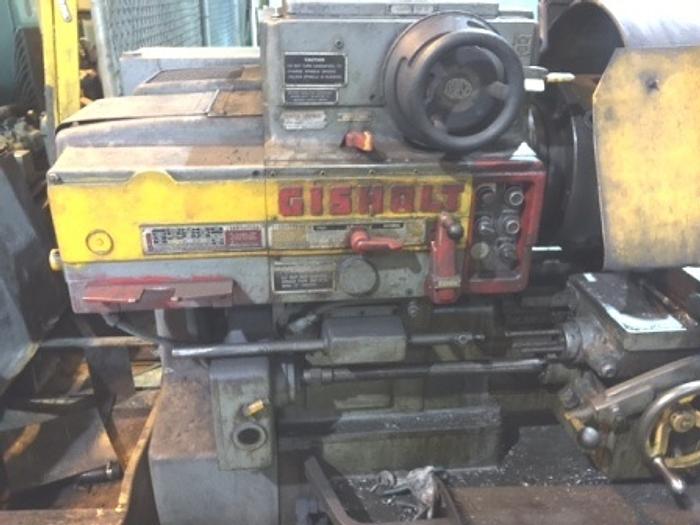

1975 Gisholt No.5 Turret Lathe | 5" Bore

$5,500 (USD)

Helena, AL

orCall 205-664-9644

Description

Model: No. 5 Specifications: Swing Over Bed......................................20" Swing Over Cross Slide..............................10-1/4" Max Distance Spindle Nose To Cross Slide............28-7/8" Max Distance Spindle Nose To Turret Face............36-1/2" Minimum Distance Spindle Nose To Turret Face........5-1/2" Max Turning Length..................................12" Max Bar Capacity....................................5" Spindle Speeds......................................(24)25-1500 RPM Spindle Nose........................................A2-8 Carriage Longitudinal Feeds.........................(6)0.004-0.045 IPR Carriage Cross Feeds................................(6)0.003-0.027 IPR Turret Feeds........................................(6)0.005-0.048 IPR Turret Stations.....................................6 Stations Main Drive Motor....................................20/10 HP


Freight charges are not included in sale price. Freight scheduling and costs are responsibility of the buyer. Packaging charges to ensure safety of equipment during transport for arrival on buyers truck will be added when applicable.


Specifications

ManufacturerGisholt
ModelNo.5 Turret Lathe
Year1975
ConditionUsed
Stock Number7011
