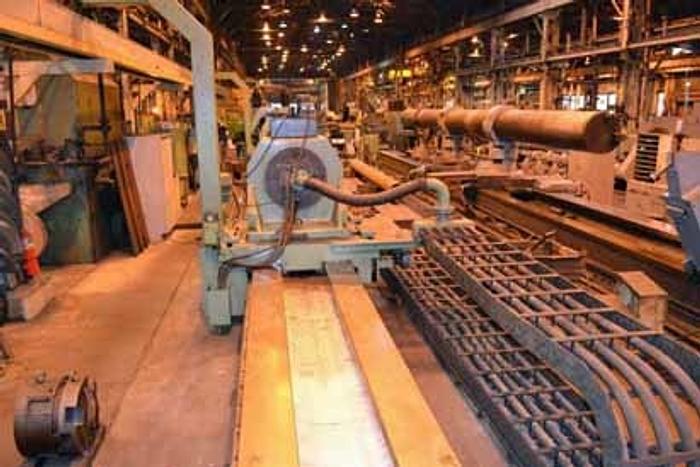

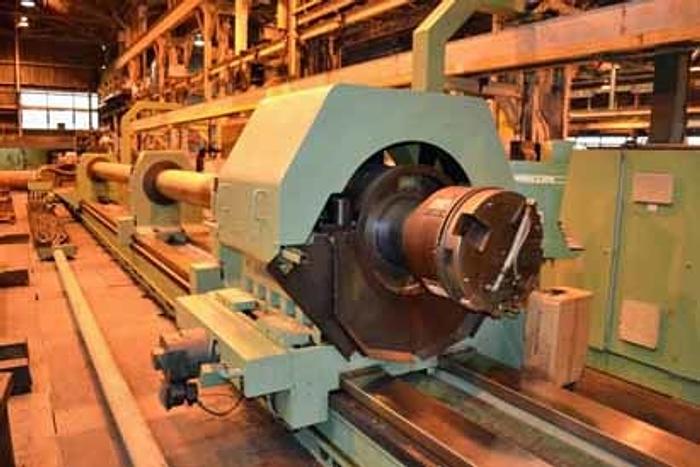

63" x 396" Wohlenberg VDF PB4-1600 High Performance CNC Boring Lathe, 1991

Contact us for price

Helena, AL

orCall 205-664-9644

Description

Model: PB4-1600
Year: 1991
Specifications:
CAPACITY:
MAXIMUM SWING OVER BEDWAYS62.99"
BORING DIAMETER SOLID BORING12.4"
TREPANNING2" TO 25"
COUNTER BORING WITH PILOT PRE-BORE+ 25"
MAXIMUM BORING DEPTH, Z-AXIS396"
LENGTH OF BED1,176"
WIDTH OF BED39.37"
MACHINE WEIGHT180,000 LBS
WORK HEADSTOCK:
SPEEDS, INFINITELY VARIABLE1.8-355 RPM
SPEED RANGES4
MAIN SPINDLE DIAMETER FRONT BEARING11.81"
MAIN SPINDLE BORE6.4"
MAXIMUM TORQUE, 31 RPM AT 180 HP39,900 FT LBS
MAXIMUM WORKPIECE WEIGHT (1) REST88,000 LBS
MAXIMUM WORKPIECE WEIGHT (2) RESTS110,000 LBS
MAXIMUM WORKPIECE WEIGHT (3) RESTS140,000 LBS
MAIN MOTOR160 HP
ELECTRICS460V 3-PH 60 CYCLE
APPROXIMATE FLOOR SPACE (L X W)1260" X 102"
GUIDE CARRIAGE:
FEED RANGE0-120 IPM
RAPID TRAVERSE120 IPM
MAXIMUM FEED PRESSURE22,500 LBS
BORING SLIDE:
FEED RANGE0-120 IPM
RAPID TRAVERSE120 IPM
MAXIMUM FEED PRESSURE22,500 LBS
EQUIPPED WITH:
55.12" DIAMETER FACE PLATE CHUCK WITH JAWS
GIDDINGS & LEWIS 8000 CNC CONTROL INSTALLED 2000
16.92" DIAMETER BORING BAR

Specifications

Conditionused
Stock Number7543
