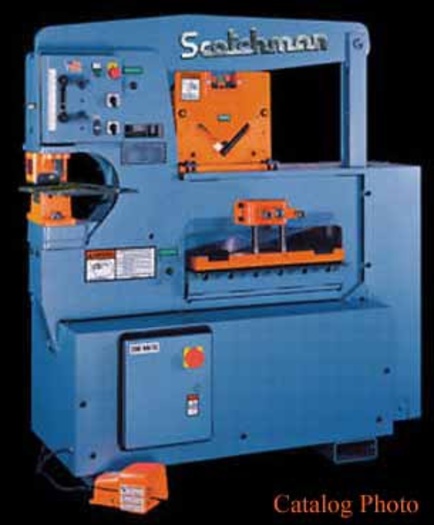

65 Ton Scotchman 2409-24M Ironworker With Tooling & Laser Light, 460V

Contact us for price

Helena, AL

orCall 205-664-9644

Description

SPECIFICATIONS:
Rated On: A 36 Mild Steel / 65,000 PSI Tensile
Punching Capacity ...................... 65 Ton (58mt)
1-1/16" in 3/4" (27mm in 18mm)
Throat Depth ........................... 9" (225mm)
Flat Bar Shear ......................... 24" Length (600mm)
1" x 6" (25 x 150mm)
3/4" x 10" (18 x 250mm)
1/2" x 12" (12 x 300mm)
3/8" x 16" (10 x 400mm)
1/4" x 24" (6 x 600mm)
Angle Shear 90 Degrees ................. 6" x 6" x 3/8" (150 x 150 x 10mm)
5" x 5" x 1/2" (125 x 125 x 12mm)
Angle Shear 45 Degrees ................. 3" x 3" x 3/8" (75 x 75 x 10mm)
(with Bar Shear) ..................... 4" x 4" x 1/2" (100 x 100 x 12mm)
Strokes Per Minute in Light Material ... 40 SPM (1/4" Stroke) (Punch Station)
Strokes Per Minute in Heavy Material ... 17 SPM (3/4" Stroke) (Punch Station)
Hydraulics ............................. 2,600 PSI (183 Bar)
Motor Standard ......................... 5HP (3.73 kW), 460V, 3PH, 60HZ
Dimensions ............................. W - 24" (57cm)
L - 60" (152cm)

Specifications

Conditionused
Stock Number7546
