Okamoto ACC-820DX
No longer available
Okamoto ACC-820DX
$11,500 (USD)
Helena, AL
Description

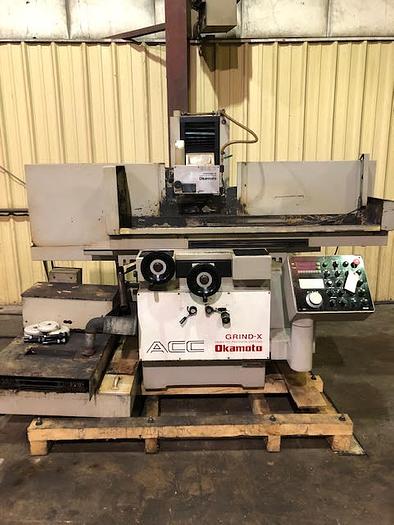

Okamoto ACC-8.20DX Surface Grinder
Machine Specifications Capacity:
Maximum Longitudinal Travel 26 inch
Maximum Cross Travel 9.0 inch
Maximum Distance under 8” Wheel to Table Surface 15.6 inch
Magnetic Chuck Size (W x L) 8 x 20 inch
Table Load Capacity (Includes Chuck Weight) 440 lbs
Table:
T-Slots (No. x Width) 1 x 0.7”
Hydraulic Feed Rate 1.0 - 82 ft/min.
Hand Feed per Revolution 1.85 inch
Crossfeed:
Hydraulic Intermittent Crossfeed 0.02 - 0.4 inch
Hydraulic Continuous Crossfeed Rate 4 - 40 ft/min.
Crossfeed Per Revolution 0.250 inch
Handfeed Dial Graduation 0.001 inch
Wheelhead:
Automatic Vertical Feed per Table Stroke 0.00005 - 0.0015 inch (10 settings)
Rapid Feed Rate 16 inch/min.
Manual Pulse Feed (x.1)0.00001, (x1)0.0001 (x10)0.001 inch
Grinding Wheel:
Size (DxWxB) 8x0.75x1.25 inch
Speed 3,600 rpm/60Hz.
Motors:
Grinding Wheel Spindle 2 hp
Hydraulic Pump 1 hp
Vertical Rapid Feed & Downfeed 0.5 AC Servo
Electro-Magnetic Chuck & Coolant System
Floor Space (LxWxH): 95 x 63 x 70 inch
Net Weight: 3,810 lbs
Specifications
Manufacturer | Okamoto |
Model | ACC-820DX |
Condition | Used |
Serial Number | 62792 |
Stock Number | 9018 |
