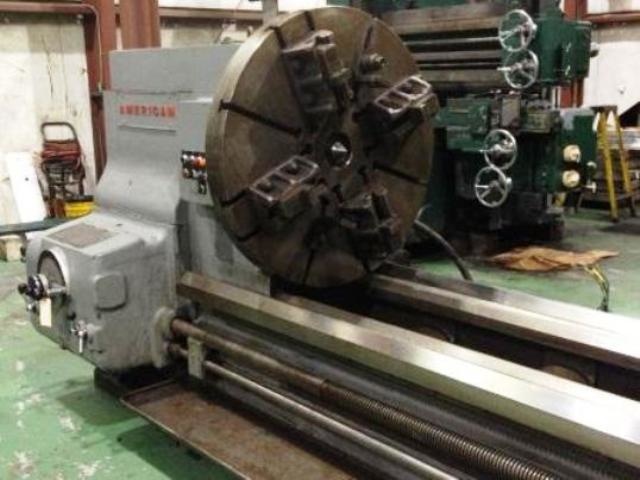

46" x 396" AMERICAN MODEL 4025-31, 31" OCS, TAPER, 1978

Contact us for price

Helena, AL

orCall 205-664-9644

Description

SPECIFICATIONS:
Swing Over Bed ............................ 46 1/2"
Swing Over Carriage Wings ................. 44"
Swing Over Cross Slide .................... 31"
Center Distance(33 Ft.)................... 396"
Domestic Shipping Weight .................. 54,550 Lbs
Max. Size Motor Recommended .............. 60 H.P.
Coolant Capacity - Base Length ............ 60 Gal.
Headstock
Length of Bed ............................. 49-1/2"
Hole in Spindle ........................... 2-7/8"
Number of Spindle Speeds .................. 27
Taper of Center............................ #6MT
High Range 27 Speed Head .................. 9-900 RPM
Medium Range 27 Speed Head................. 7-1/2-750 RPM
Low Range 27 Speed Head.................... 6-600RPM
Spindle Radial Load Capacity
Front Bearing at 100 RPM.................. 53,300LBS.
Center Bearing at 100 RPM ................ 29,300LBS.
Spindle Thrust Load Capacity
Front Bearing at 100 RPM ................. 47,600LBS.
Gearbox

Specifications

Conditionused
