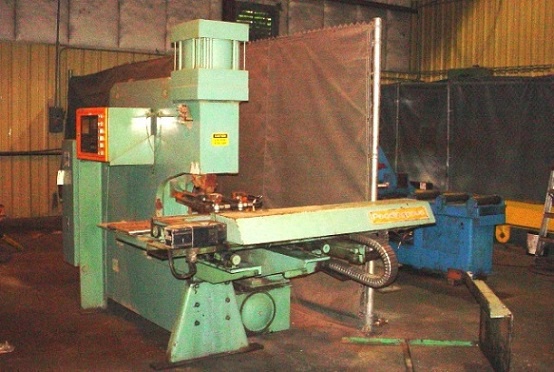

PEDDINGHAUS CNC C-Frame Hydraulic Plate Punch w/20" Throat, Fagor 8020 CNC Contr
No longer available
PEDDINGHAUS CNC C-Frame Hydraulic Plate Punch w/20" Throat, Fagor 8020 CNC Contr
Helena, AL
Description
CATALOG SPECIFICATIONS:
Capacity:
Maximum......................... 60" x 30" x 1 "
8" x 8" x 1/18" angle
Minimum......................... 2 " x 2 " x 1/8" angle
Maximum material thickness...... 1 "
Capacity........................ 154T
Positioning range............... 30" x 60" W/repositioning
Minimum programmed increment .001
Positioning accuracy............ +/- 1/32"
Electronic accuracy............. +/- .001
Full stroke of press ram........ 2"
Part positioning rate........... 500IPM
Material clamp.................. hydraulic
Material clamp force............ 2000lbs
Clamp in X axis................. hydraulic
Stripper type................... Positive infinitely adj
Punch stroke control............ adj limit switch
Hydraulic pressure.............. 2750 PSI
Power unit motor................ 25HP
Oil capacity.................... 50 gallons
Die height from floor........... 40"
Dimensions...................... 12' x 9' x 8'T
Approx. weight.................. 15,000 lbs
EQUIPPED WITH:
Specifications
Condition | Used |
