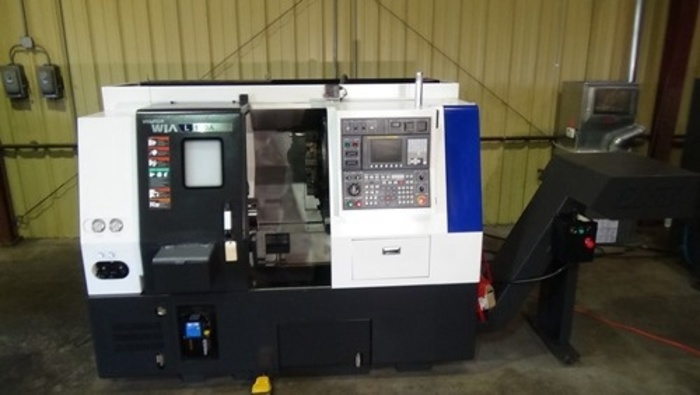

Hyundai Wia L150A CNC Lathe, 8" 3 Jaw Chuck, Fanuc i CNC, 2013

Contact us for price

Helena, AL

orCall 205-664-9644

Description

Model: L150A
S/N: G3131-1896
Year: 2013
Specifications:
Chuck....................................8"
Swing....................................21.7"
Turning Length...........................16.1"
Bar Capacity.............................1.77"
X Travel.................................8.3"
Z Travel.................................16.9"
Rpm Spindle..............................6,000
Rapid Traverse...........................1,417 ipm
Turret...................................12 Station
One Touch Tailstock......................15.8" Travel
Electrics................................220V/3Ph/60Hz
Motor....................................28.2Hp
Overall Dimensions.......................97"W x 78"L x 79"H
Weight...................................6700 Lbs
Run Time.................................6 Hours, 22 Min, 5 Sec
Cutting Time.............................5 Hours, 14 Min, 35 Sec
Parts Count..............................17874
Equipped With:
Fanuc i CNC
8" 3 Jaw Chuck
Coolant
Chip Conveyor

Specifications

Conditionused
